Elcometer D266-4 Holiday Detector
Manufacturer: ELCOMETER Model: D266----4 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
High Voltage Output Accuracy: ±5% or ±50V below 1000 Volts
Operating Temperature: 0°C to 50°C (32°F to 120°F)
Power Supply: Rechargeable lithium ion battery, fully charged within 4 hours
Measured Current Flow Accuracy: ±5% of full scale Output Current:0 - 100µA maximum
Typical Battery Life - Backlight Off (On) DC5: 40 (20) hours DC15: 20 (15) hours DC30: 10 (8) hours
Instrument Case Dimensions: Waterproof, ABS case; 520 x 370 x 125mm (20.5 x 14.5 x 5”)
Weight: Base unit (including battery pack): 1.2kg (2.7lb) Handle: 0.6kg (1.3lb)
Packing List: Elcometer 266 DC Holiday Detector, lithium battery, curly connection cable for high voltage handle, 10m signal return lead, Battery Charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions

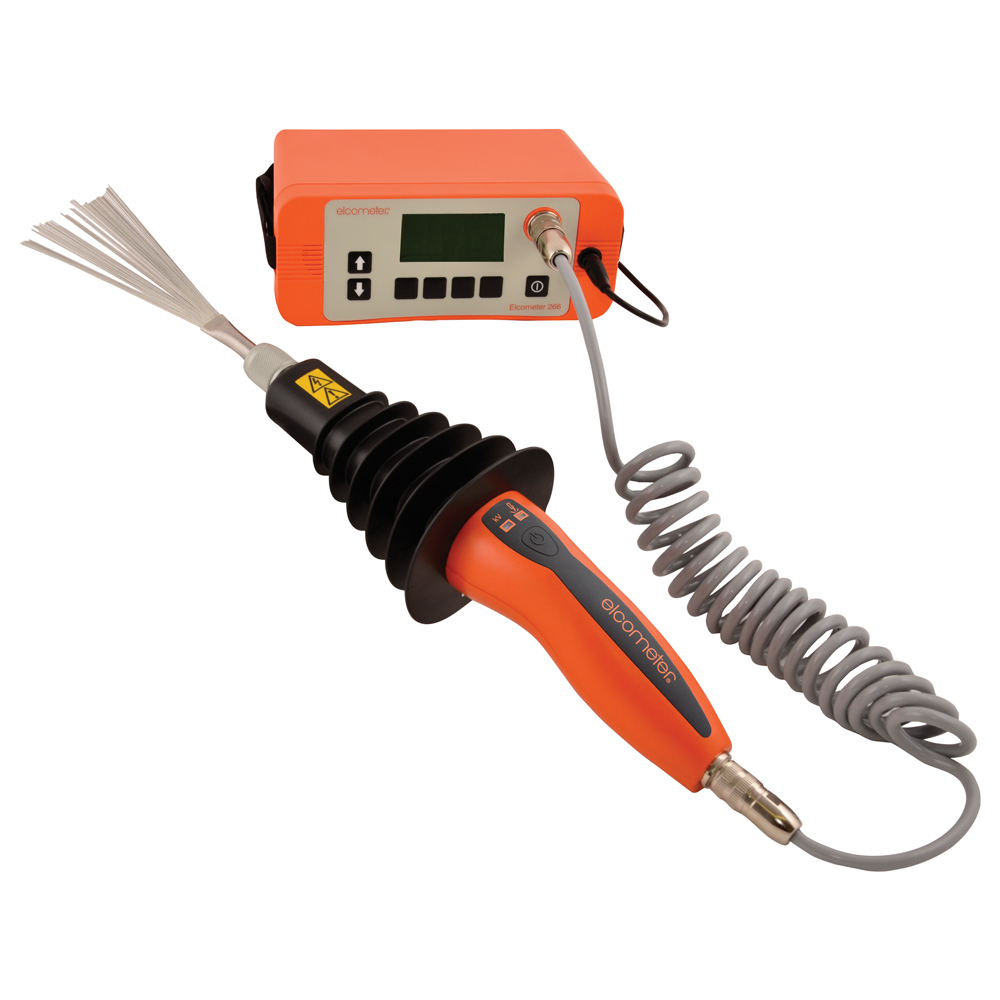

Elcometer 266 DC Holiday Detector
The Elcometer 266 revolutionises high voltage DC testing of coatings porosity detection making it safer, easier and more reliable than ever before.
The Elcometer 266 holiday detector can be used to test porosity on coatings up to 7 mm (275 mils) thick and is ideal for inspecting coatings on pipelines and other protective coatings.This holiday tester features a built-in voltage calculator which will determine and set the correct test voltage based upon the test standard and the thickness of coating being tested.
Elcometer 266 DC Holiday Detector
Technical Specification
|
Part Number |
Description |
|
Certificate |
|
D266----4 |
Elcometer 266* |
|
ο |
|
High Voltage Output Accuracy |
±5% or ±50V below 1000 Volts |
||
|
Operating Temperature |
0°C to 50°C (32°F to 120°F) |
||
|
Power Supply |
Rechargeable lithium ion battery, fully charged within 4 hours |
||
|
Measured Current Flow Accuracy |
±5% of full scale Output Current:0 - 100µA maximum |
||
|
Typical Battery Life - Backlight Off (On) |
DC5: 40 (20) hours |
DC15: 20 (15) hours |
DC30: 10 (8) hours |
|
Instrument Case Dimensions |
Waterproof, ABS case; 520 x 370 x 125mm (20.5 x 14.5 x 5”) |
||
|
Weight |
Base unit (including battery pack): 1.2kg (2.7lb) Handle: 0.6kg (1.3lb) |
||
|
Packing List |
Elcometer 266 DC Holiday Detector, lithium battery, curly connection cable for high voltage handle, 10m (32’) signal return lead, Battery Charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions |
||
