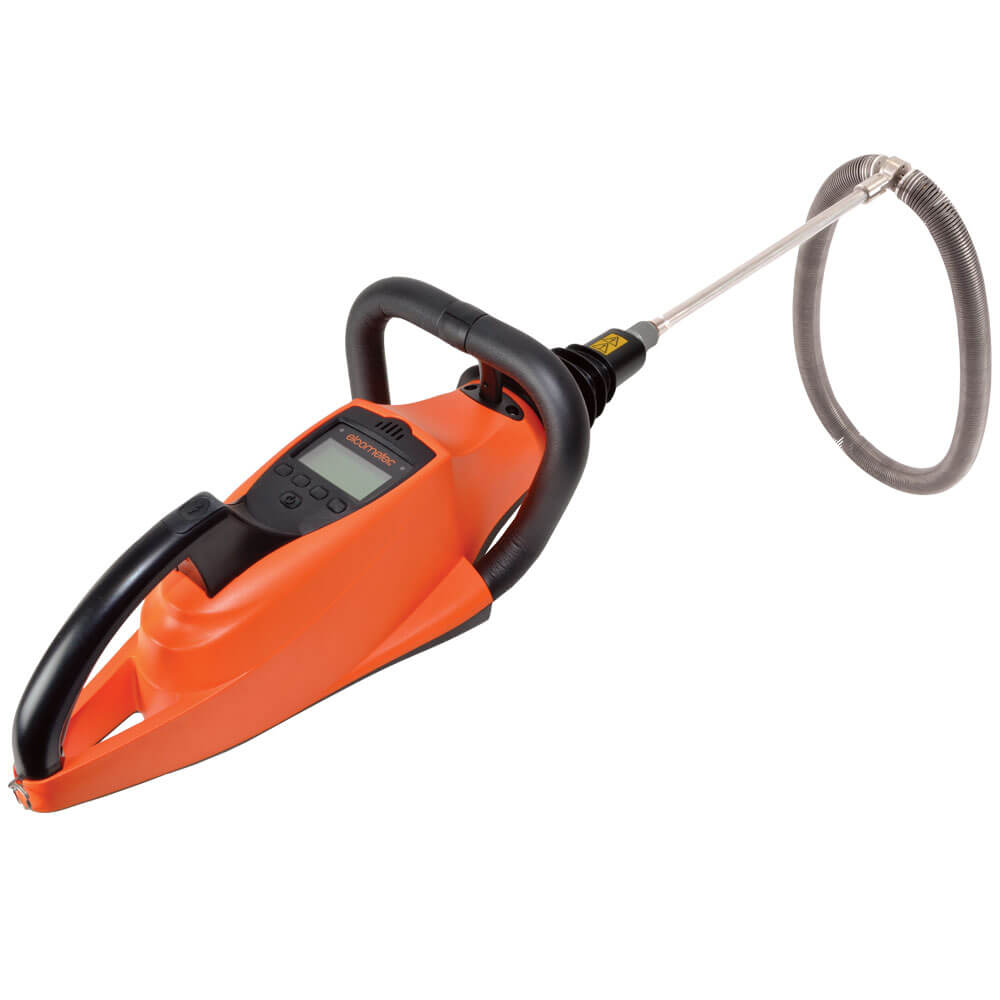

ELCOMETER 280 Pulsed DC Holiday Detector Inspection Kit (0.5kV~35kV)

Pulsed DC High Voltage Range: 0.5kV~35kV

Voltage Adjustment: User adjustable 0.5 - 1kV: 10 Volt steps, 1 - 35kV: 100V steps

High Voltage Output Accuracy: ±5% or ±50V below 1000 Volts

Pulse Repetition Rate: ~30Hz

Operating Temperature: 0°C to 50°C (32°F to 120°F)

Power Supply: Rechargeable battery Pack; Battery fully charged within 4 hours

Typical Battery Life:

- Battery life is dependant upon selected voltage and load applied;

-12” (DN305) Rolling Spring: 30 hours at 10kV; 12 hours at 35kV

- 40” (DN1016) Rolling Spring: 22 hours at 10kV; 8 hours at 35kV

Instrument Case Dimensions: PC ABS case; (l x w x h): 603 x 219 x 193mm (23.7 x 8.6 x 7.6”)

Weight (no probes attached): 3.0kg (6.6lb) - including battery pack

Packing List:

- Elcometer 280 Pulsed DC Holiday Detector Inspection Kit

-  Gauge (Model S or T), 5m (16’) trailing signal return lead, battery pack (2 supplied with Model T), battery charger with UK, EUR, US and AUS plugs, stainless steel rolling spring holder (supplied with Model T only), 250mm (9.8”) probe extension shaft, shoulder strap and operating instructions - packed in a light weight, rugged, wheeled transit case - ideal for transportation
