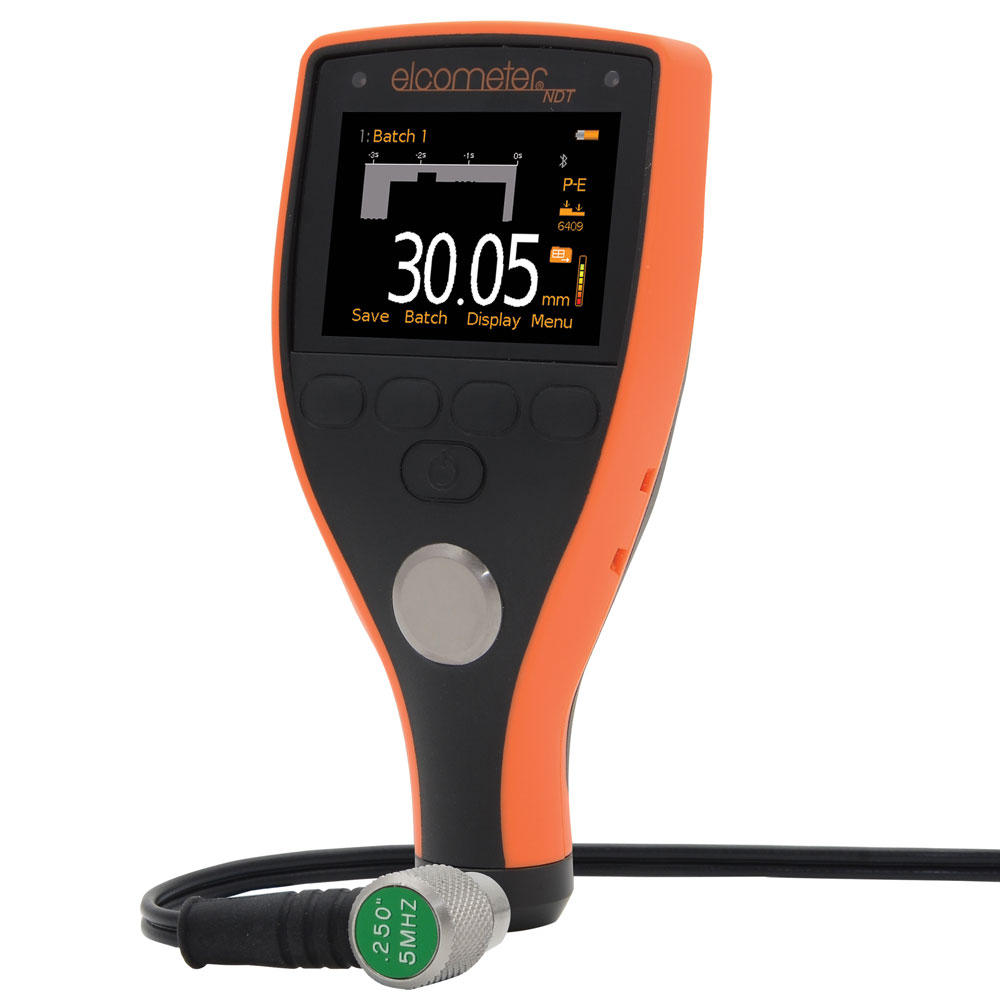

Elcometer MTG8BDL-TXC Material Thickness Gauge (500mm, 25.40mm, datalogging, IP54, ThruPaint)

Pulsed-Echo (P-E) measurement Mode
Pre-calibrated for measuring on steel only
Tough, impact, waterproof and dust resistant equivalent to IP54
Measurement Mode: Pulsed Echo (P-E)
Measurement Rate: 4, 8, 16Hz
Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
Measurement Accuracy: ±1% or ±0.05mm
Measurement Units: mm or inch, m/s, in/µs
Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Data Output: USB, bluetooth to PC
Data logging: yes
Transducer Probe Type: Dual element
Battery Type: 2xAA
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Operating Temperature: -10 to 50°C
Size (w x h x d): 145x73x37mm
Weight (including batteries): 210 g
Packing List: Elcometer MTG8BDL , 5MHz 1/4, 5MHz 1/4 right angle transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, USB cable, ElcoMaster® Software, operating instructions

Datasheet

Manual
