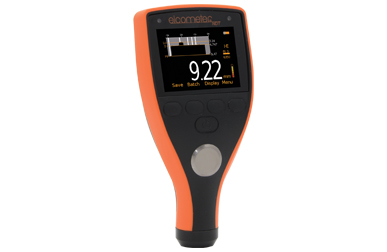

ELCOMETER PTG6 Ultrasonic Precision Thickness Gauge (Only gauge, 0.15mm~25.40mm)

Tough, impact, waterproof and dust resistant equivalent to IP54

Measurement Mode: Echo-Echo (E-E), Interface Echo (I-E), Plastic Mode (PLAS)

Measurement Rate: 4, 8, 16Hz

Thickness Range: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm

Measurement Accuracy: E-E 0.15 - 10.15mm, I-E 1.65 - 25.40mm, PLAS 0.15 - 5.00mm

Measurement Units: mm or inches

Selectable Reading Resolution

+ Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

+ Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Calibration Options: 1 - point, 2 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration, Velocity (speed of sound)

Data Output: USB; to PC, ElcoMaster® software

Battery Type: 2 x AA

Battery Life: Alkaline: 15 hours

Lithium: 28 hours

Operating Temperature: -10 to 50°C (14 to 122°F)

Size (w x h x d): 145x73x37mm (5.7x2.84x1.46")

Weight (including batteries): 210g (7.4oz)

Packing List: Elcometer PTG6, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions

Transducer not included
