Measurement Mode: PE, EE, PECT, EEV
Measurement Rate Manual: 4 readings per second
Measurement Range
+ PE: 0.63 - 500mm (0.025 - 19.999 inches)
+ EE: 2.54 - 102mm (0.100 - 4.000 inches)
+ PECT: 0.63 - 500mm (0.025 - 19.999 inches)
+ PECT: 10.0 - 254mm (0.001 - 0.100 inches)
+ EEV: 1.00 - 150mm (0.040 - 6.000 inches)
Measurement Accuracy: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 1250 - 13,995m/s
A-Scan: Stored in memory with each reading for review on PC
Waterproof - depth ratings: Maximum depth 300 metres (1,000 feet) - equivalent to IP68
Data logging: 5,000 with A-scan image & gauge settings in one batch
Calibration Options: Velocity & material type
Transducer Probe Type: Dual and single element
Transducer Frequency Range: 1 - 10MHz
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Operating Temperature: -30 to 60ºC (-20 to 140ºF)
Size (length x diameter): 229.0 x 60.33mm (9.0 x 2.4 inches)
Weight (including batteries): 680g (24.0oz)
RS232 Interface: Bi-directional

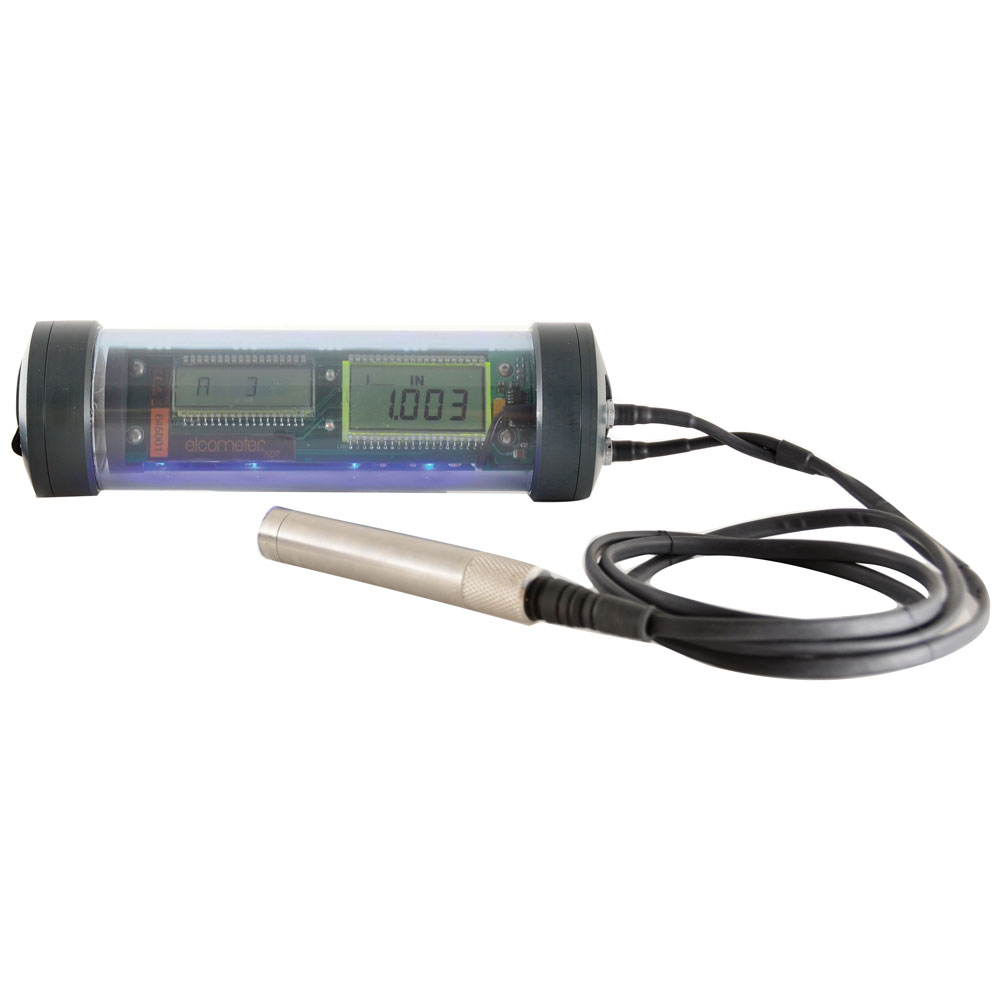

Packing List: Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate,3 x AA batteries, ElcoMaster® software, transfer cable, spare gaskets and lubrication set
Note: A transducer is not suppied with the Gauges, must be ordered separately
