Light Tube:
Tube Type: Closed Tube
Tube Voltage: 160 kV
Tube Current: 2.5 mA
Tube Power: 50 mm (Al)
Detail Resolution: D = 0.4 mm
Cooling Method: Air Cooled
Flat Panel Detector:
Effective Imaging Area: 427 × 427 mm
Pixel Size: 139 μm
A/D Conversion: 16 bit
Sample Table:
X-Axis: 420 mm
Y-Axis: 480 mm
Z-Axis: 360 mm
R-Axis: Horizontal 360° rotation
Maximum Bearing Capacity: 10 kg
Feature:

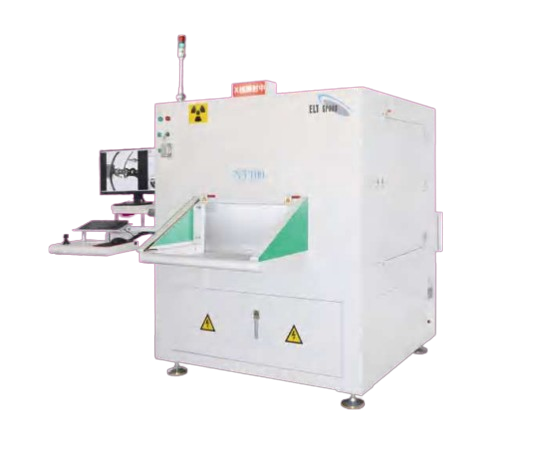

Used for non-destructive testing of bubbles, pores and foreign bodies in automobile steering wheel and various small castings; equipped with automatic testing software to automatically determine good and bad products; the workpiece on the pallet detection platform can be rotated 360° and detected from multiple angles.
