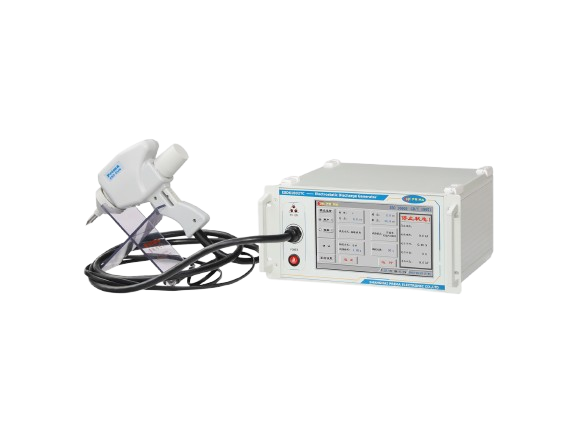

EMC Prima ESD61002TC Automotive ESD Simulator (0.20kV–30.0kV ±5%)

Contact Discharge: 200V–30000V (±5%)

Air Discharge: 200V–30000V (±5%)

Voltage Range: 0.20kV–30.0kV ±5%

Step Voltage: 0.0kV–10.0kV

Holding Time: >5s

Output Polarity: ＋, －, ＋/－, －/＋

T&H: Built-in thermometer and humidity meter

Discharge Electrode: Pointed head (contact discharge electrode); Round head (air discharge electrode)

Discharge Mode: Contact discharge, air discharge

RC Module – Discharge Capacitance: 150pF/330pF

RC Module – Discharge Resistance: 330Ω/2000Ω

Repetition Frequency: Single/0.1/0.2/0.5/1/2/5/10/20Hz

Trigger Mode: Single, manual, automatic trigger

Pulse Count: 1c–60000c

Rise Time: 0.6–1.0ns

PRODUCT DETAILS

ergonomic design

10.1 inch color touch screen operation

positive and negative polarity arbitrary conversion

Chinese and English can be switched

custom, boost and standard mode

excellent technology, durable

the highest test voltage can reach 30kV.

intelligent detection of air discharge failure

RJ45 and RS232 interface, remote (optional)

discharge module can be replaced.

support single continuous 20pps scanning discharge mode.

built-in temperature and humidity time and real-time high-pressure display

discharge electrode can be replaced freely.

IEC61000-6-1

GR 1089

EN61326

GB/T17626.2/EN/IEC61000-4-2

GB/T19951

ISO10605

IEC61340-3-1

ITU-TK.20

IEC61326
