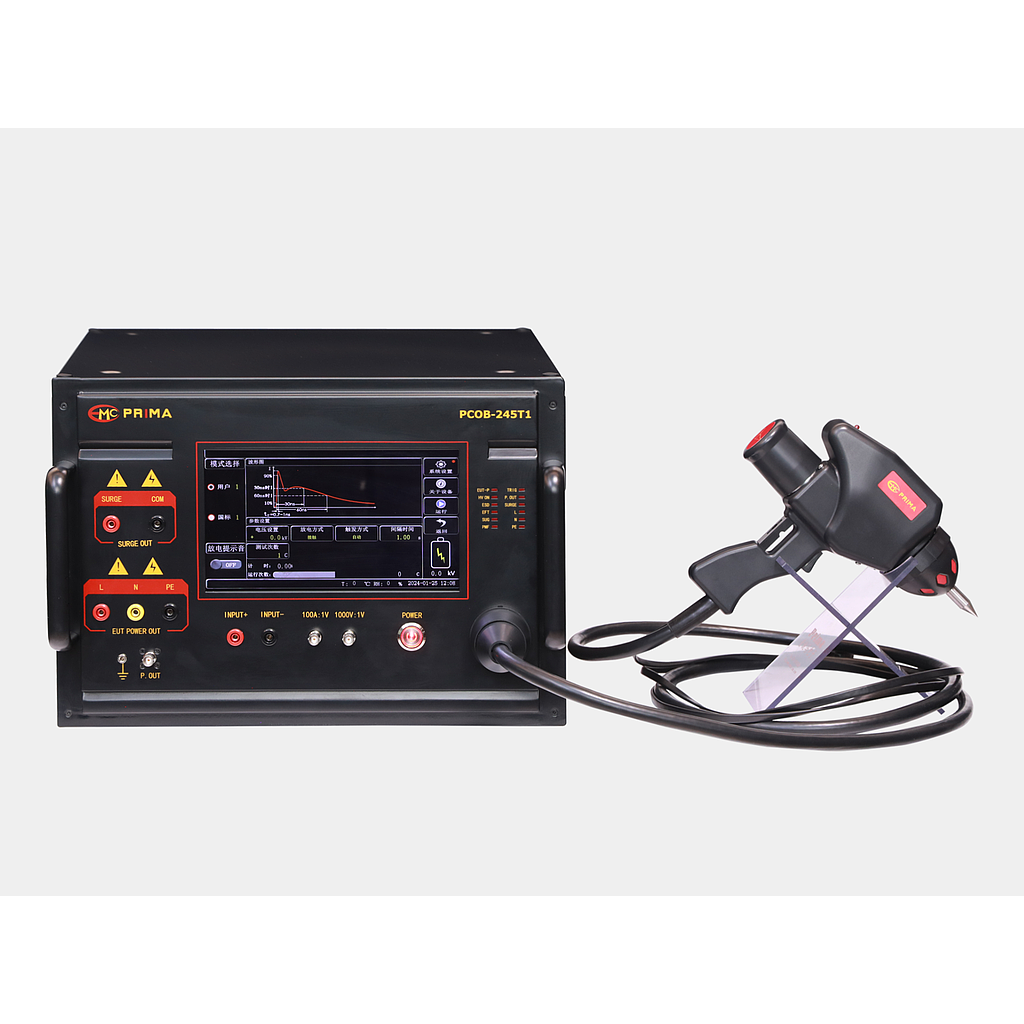

EMC Prima PCOB-245T1 Combined EMC simulator

ESD

Output Voltage: 0.2～±20 kV ±5%, Positive / Negative

Testing Functions: Contact discharge / Air discharge

Working Form: Discharge interval 0.05～99.99 s; testing form 20PPS discharge; setting less than 0.05 s, called single discharge

Discharge Capacitor/Resistor: 150 pF / 330 Ω (optional)

Current Rise Time: 0.7～1 ns

EFT

Output Voltage: 500～±5000 V ±10%, Positive/Negative/Switchable

Pulse Frequency: 1 kHz～1200 kHz ±10%, adjustable

Resistor: 50 Ω ±20%

Rise Time: 5 ns ±30%

Impulse Duration – 50 Ω Load: 50 ns ±30%

Impulse Duration – 1 kΩ Load: 35 ns～150 ns

Number of Burst: 1～255

Burst Period: 300 ms (0.15～9.99 s adjustable, step 0.01 s)

SUG

Open-Circuit Voltage: 1.2/50 μs, 0.5～6 kV ±10%

Short-Circuit Current: 8/20 μs, 0.25～3 kA ±10%

Surge Polarity: Positive / Negative / Switchable

Phase: Synchronism 0°～360° selectable / Asynchronism

Output Impedance: Complex impedance: 2 Ω, 12 Ω

Surge Count: 1～9999

Surge Interval: 10～9999 s

Coupling Path: Built-in, 1-phase 3-wire, AC/DC 240 V, 16 A

Working Power Supply: AC220 V 50/60 Hz

PCOB-245T1 is specially designed for the requirements of electromagnetic compatibility - surge (impact) (SUG) immunity test, electrical fast transient pulse group immunity test and electrostatic discharge (ESD) immunity test. It is used to evaluate the performance of power cords and internal connecting wires of electrical and electronic equipment when subjected to high-energy transient interference caused by switches and natural lightning strikes. It provides an evaluation basis for the power supply ports, signals, control and grounding ports of electrical and electronic equipment when subjected to electrical fast transient pulse groups (EFT) interference, and provides an evaluation basis for the performance of electrical and electronic equipment when subjected to electrostatic discharge interference directly from operators and adjacent objects.

- Max 20KV ESD/5KV EFT/ 6KV Surge voltage, All in one

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- excellent technology, durable

- the highest test voltage can reach 20kV.

- intelligent detection of air discharge failure

- RJ45 and RS232 interface, remote (optional)

- IEC61000-6-1

- GR 1089

- IEC/EN60664

- GB/T17626.5/IEC61000-4-5

- ITU K20

- EN61326

- GB/T17626.2/EN/IEC61000-4-2

- GB/T19951

- ISO10605

- ANSIC62.41/45

- GB/T16927.1

- IEC/EN61850-3

- IEC61340-3-1

- IEC/EN 61643-1

- ANSI/IEEE C62.41

- ITU-TK.20

- ITU K44

- ITU K45

- IEC/EN 61010

- GB/T 17626.4/IEC 61000-4-4

- IEC/EN61000-6-1

- EC/EN 60601-1-2
