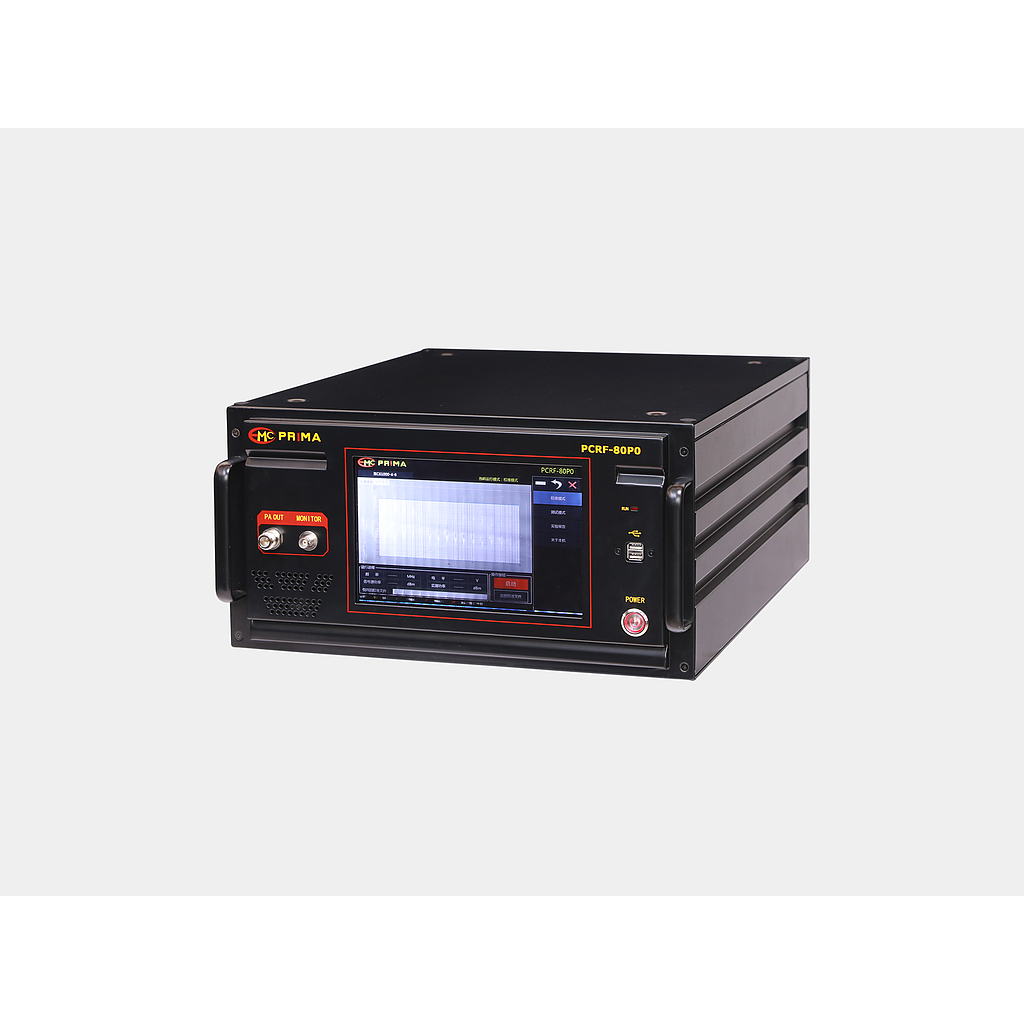

EMC Prima PCRF-80P0 Conducted Susceptibility

Output Voltage: 1～30 Vrms (CDN method)

Output Voltage: 1～18 Vrms (Electromagnetic Clamp Method)

Test Levels: 1 V, 3 V, 10 V, X (Customized)

Output Impedance: 50 Ω

VSWR: ≤1.2

Frequency Range: 9 kHz～3 GHz

Step Mode: Linear Step (0.1～100 MHz)

Step Mode: Proportional Step (0.2～10%)

Dwell Time: 0.5 s～60 s

Power: -60 dBm～10 dBm

Non-Modulated Signal: Constant Amplitude Continuous Wave

Modulation Mode – Amplitude Modulation Frequency: Frequency: 1 Hz～100 kHz; Depth: 1～100%

Modulation Mode – Pulse Modulation Frequency: Frequency: 1 Hz～100 kHz; Duty Cycle: 1～100%

Input Power: -25 dBm～+20 dBm

Maximum Output Power: +49 dBm/80 W

Harmonic: ≤-30 dBc/＜15 dBc

Output Interface: N Type (Female)

Display Screen: 10.1 inch

Working Power: AC 220 V ±10% 50/60 Hz

Ambient Temperature: 5℃～35℃

Ambient Humidity: 45%～75%

Atmospheric Pressure: 86 kPa～106 kPa

Instrument Power: 200 W

Size: 450 × 222 × 550 mm

Weight: 30 kg

Working Status Indication: Front Panel LED Indicators

The PCRF-80P0 conducted immunity generator is a comprehensive test system for RF conducted and radiated immunity tests. It can meet the test requirements of IEC61000-4-6 (Electromagnetic Compatibility Part 4: Experiments and Measurement Techniques Part 6: Immunity Test for Conducted Interference Induced by Radio Frequency Fields) through different module configurations. It evaluates the working reliability and stability of electronic equipment in a conducted noise interference environment. It can help detect the immunity of equipment to external interference sources (such as power lines, communication cables, etc.) and provide data and results for engineering design and improvement.

- 150kHz-230MHz full frequency band adjustable

- Chinese and English switchable

- Built-in industrial computer, can directly connect to printer, mouse, keyboard and USB flash drive, etc.

- Excellent workmanship, durable

- The maximum output signal level can reach 30V (149.5 dBμV), which can realize the scanning of signal level while sweeping frequency

- GB/T17626.6/IEC61000-4-6
