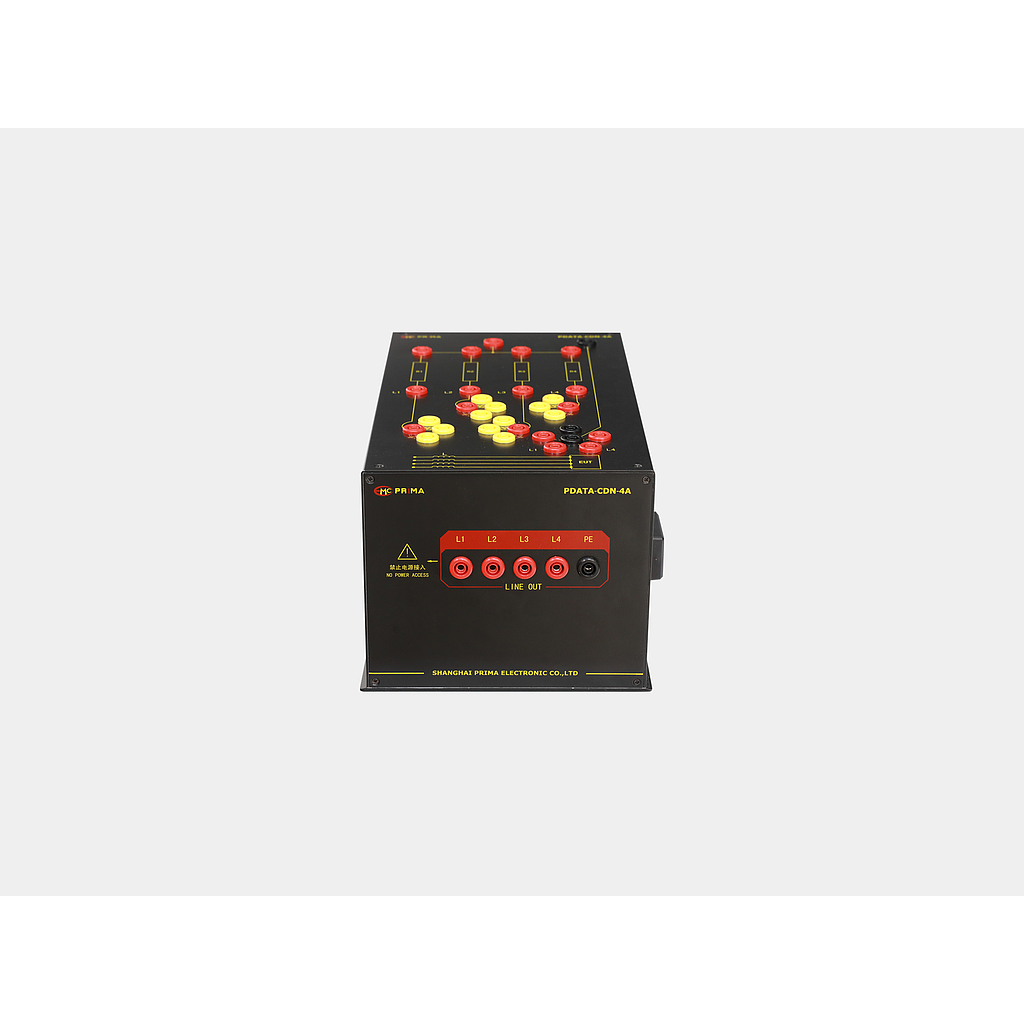

EMC Prima PDATA-CDN-4A 4 lines CDN

Open Circuit Voltage: 1.2/50 μs

Open Circuit Voltage: 10/700 μs

Short Circuit Current: 8/20 μs

Short Circuit Current: 5/320 μs

Maximum Voltage: 6.0 kV

Current Limiting Resistor: 25 Ω, 40 Ω, 80 Ω, 160 Ω

Network Decoupling Inductor: 20 mH

Coupling Device: 0.5 μF, 90 V Gas Discharge Tube

Communication: 100M

The lightning surge signal line network PDATA-CDN-4A is specially designed for the requirements of electromagnetic compatibility - surge (impact) (SUG) immunity test, and is used for lightning surge signal line networks of asymmetric interconnection lines. Perform surge tests on the communication ports of the equipment under test.
