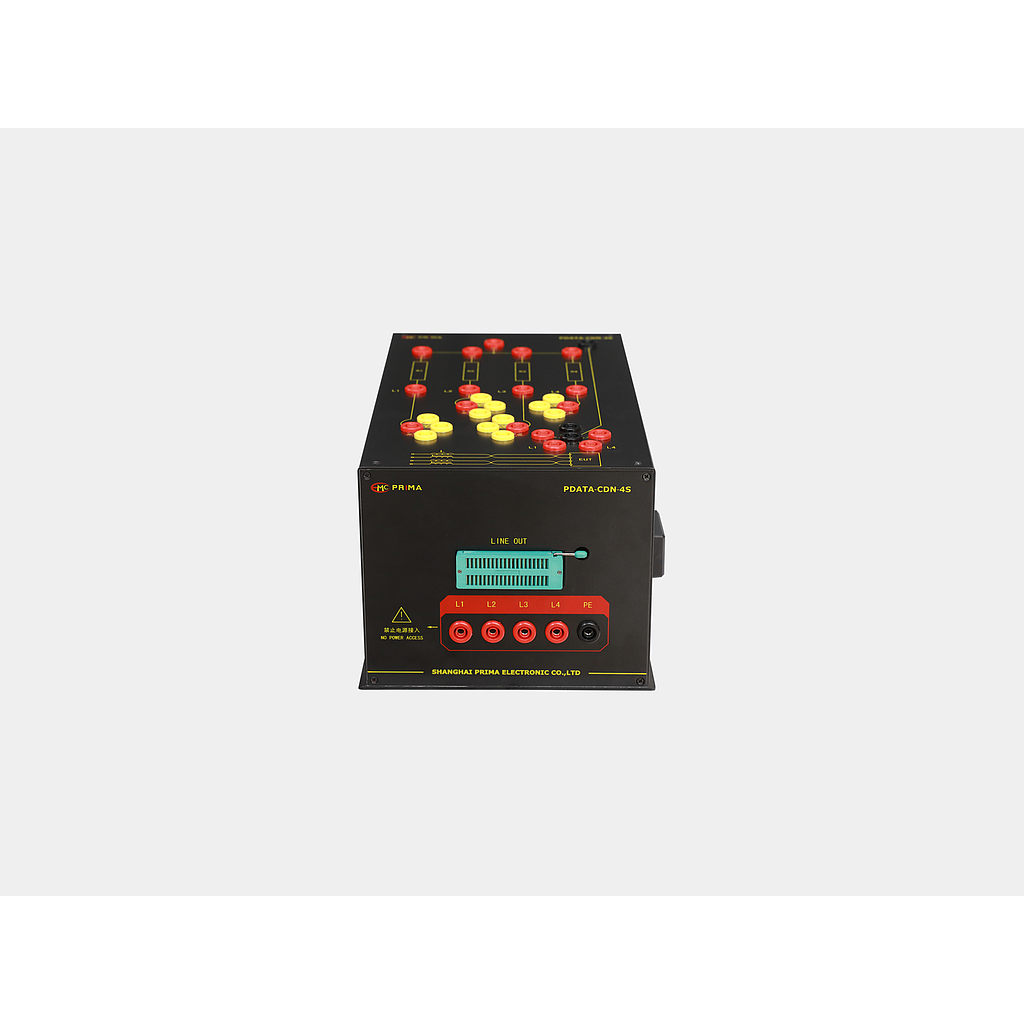

EMC Prima PDATA-CDN-4S CAN Line CDN

Open Circuit Voltage: 1.2/50 μs

Open Circuit Voltage: 10/700 μs

Short Circuit Current: 8/20 μs

Short Circuit Current: 5/320 μs

Maximum Voltage: 6.0 kV

Current Limiting Resistor: 25 Ω, 40 Ω, 80 Ω, 160 Ω

Network Decoupling Inductor: 20 mH

Coupling Device: 0.5 μF, 90 V Gas Discharge Tube

Communication: 100M

The lightning surge signal line network PDATA-CDN-4S is specially designed for the requirements of electromagnetic compatibility - surge (impact) (SUG) immunity test, and is used for lightning surge signal line networks of unshielded symmetrical interconnection lines. Perform surge tests on the communication ports of the equipment under test.
