EMC Prima PETT-7637P123 Automotive Transient Simulator

P1

Rated Voltage: 12 V, 24 V, 42 V

Output Voltage (Us): 0 V ～ -660 V (±10%)

Voltage Resolution/Voltage Step: 1 V

Voltage Accuracy: ±5%

Pulse Input Impedance (Ri): 2 Ω, 4 Ω, 10 Ω, 30 Ω, 50 Ω

Pulse Width (td) (±20%): 10 μs, 200 μs, 300 μs, 500 μs, 1000 μs, 2000 μs

Rise Time (tr): 1 μs (10 Ω), 3 μs (50 Ω)

Pulse Period (t1) (±10%): 0.5 s～99.99 s

Number of Pulses: 1～9999C

P2a

Rated Voltage: 12 V, 24 V, 42 V DC

Output Voltage (Us): 1 V ～ 660 V ±10%

Voltage Resolution/Voltage Step: 1 V

Voltage Accuracy: ±5%

Pulse Input Impedance (Ri): 2 Ω, 4 Ω, 10 Ω, 30 Ω, 50 Ω

Pulse Width (td) (±20%): 10 μs, 200 μs, 300 μs, 500 μs, 1000 μs, 2000 μs

Rise Time (tr): 0.5 μs～1 μs

Pulse Period (t1) (±10%): 0.2 s～99.99 s

Number of Pulses: 1～9999C

P3

Rated Voltage: 12 V, 24 V, 42 V DC

Output Voltage (Us):

P3a: 5 V ～ -600 V (±10%)

P3b: 5 V ～ 600 V (±10%)

Voltage Resolution/Voltage Step: 1 V

Voltage Accuracy: ±5%

Pulse Input Impedance (Ri): 50 Ω

Pulse Width (td) (±20%): 105 ns～195 ns

Rise Time (tr): 3.5 ns～6.5 ns

Frequency: 1 kHz～99.9 kHz

Pulse Period (t1) (±10%): 0.2 s～99.99 s

Number of Pulses: 1～9999C

ISO 7637-2 Test Pulse 1: simulates the transient phenomenon generated when the power supply is disconnected from the inductive load. It is applicable to various DUTs that are directly connected in parallel with the inductive load when used in vehicles. ISO 7637-2 Test Pulse 2a: simulates the transient phenomenon caused by the sudden interruption of the current in the device connected in parallel with the DUT due to the inductance of the wiring harness. ISO 7637-2 Test Pulse 3a and 3b: simulates the transient phenomenon caused by the switching process. The characteristics of these transient phenomena are affected by the distributed capacitance and distributed inductance of the wiring harness.

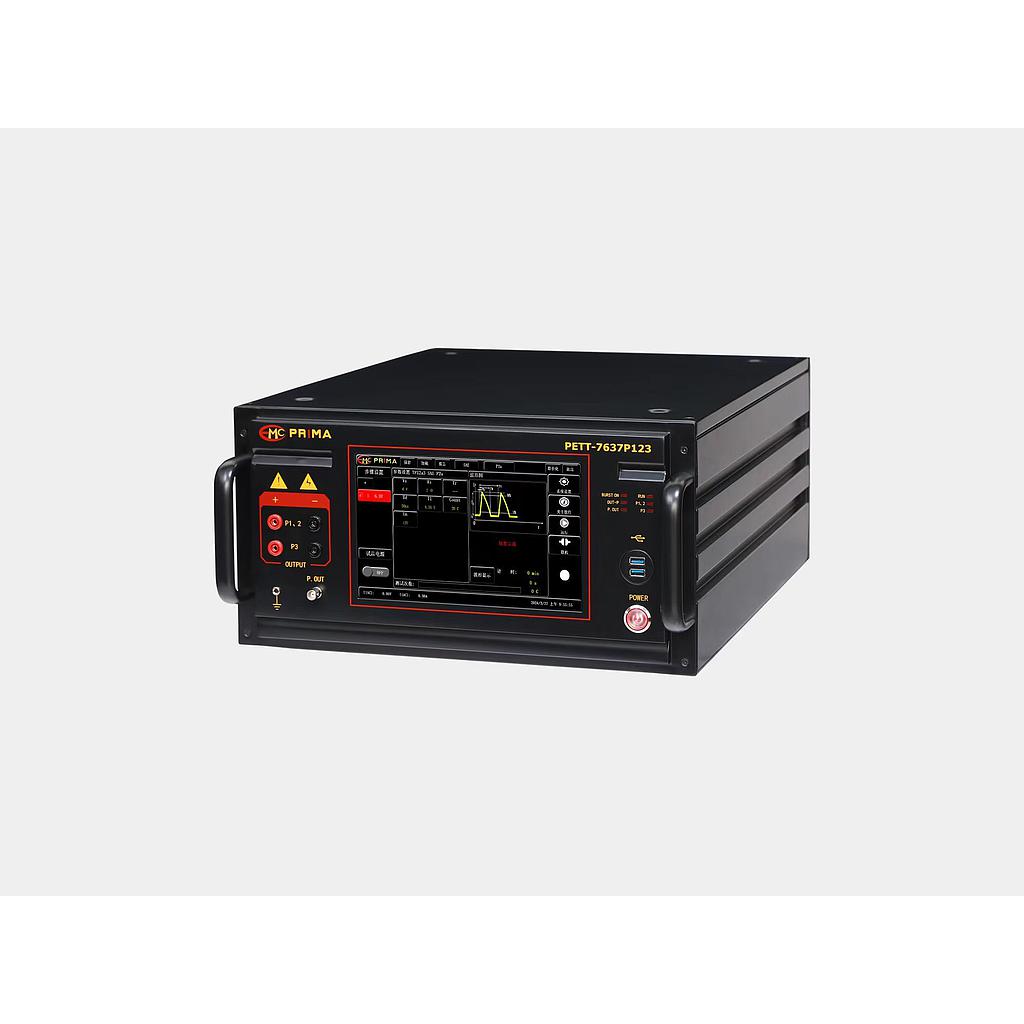

- 10.0-inch touch screen，Chinese and English display

- Imported program-controlled high-voltage power supply, stable performance

- Built-in electrical fast transient pulse group generator module

- Built-in 60V, 30A coupling network (including load dump coupling)

- Control external load dump and battery-powered simulator through CN25

- With DUT voltage, current detection and overcurrent protection function

- Built-in RJ45 and RS232 interfaces, optional remote control through computer, automatic recording of experimental data, save and print test reports

- External analog input waveform control

- Meet the standards of many manufacturers

- Built-in power switch

- ISO 7637-2

- SAE J1113-11 2000

- TL82066 2004

- B21 7110Ø328401NDS02

- MES-PW-67600

- ES-XWT-1A278-AC
