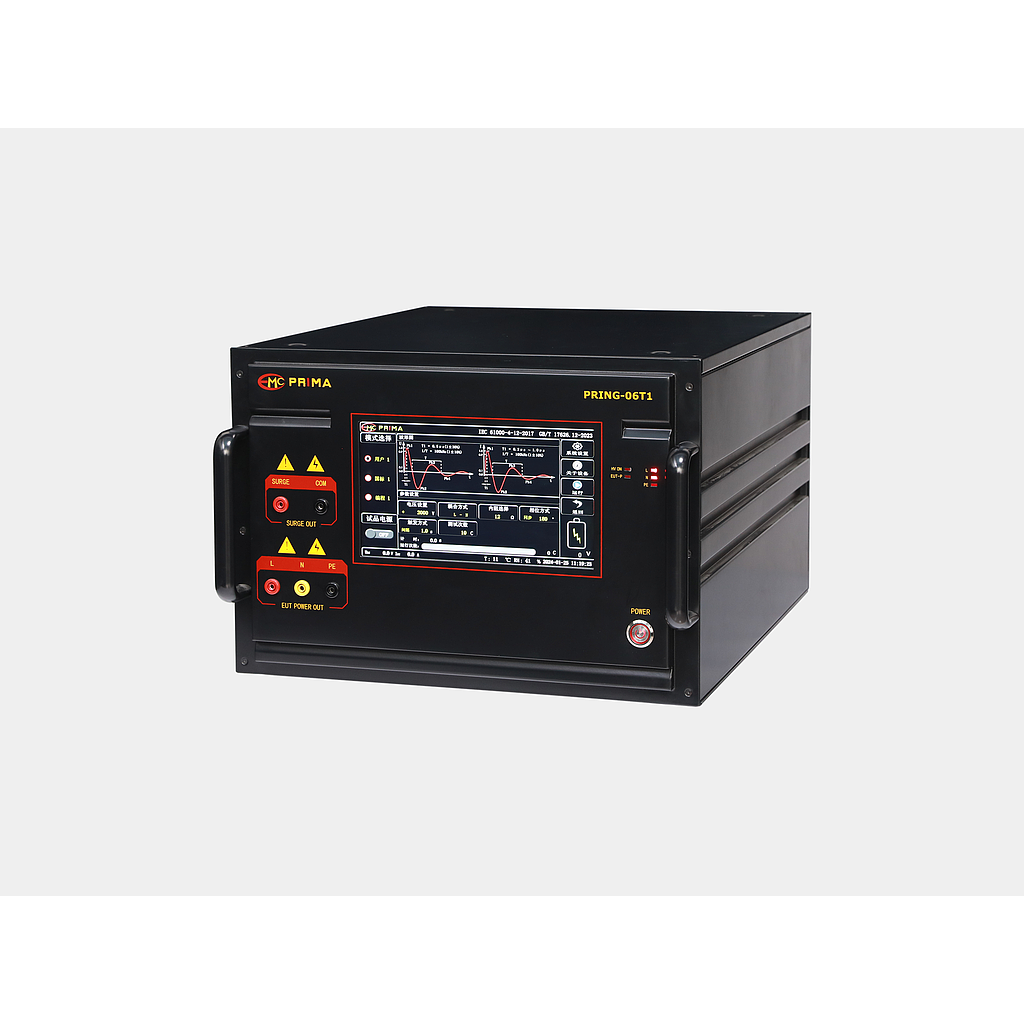

EMC Prima PRING-06T1 Ringwave Simulator (200 V～6600 V ±10%)

Ring Wave Voltage: 200 V～6600 V ±10%

Voltage Boost Range: 0 V～6600 V

Output Impedance: 12 Ω ±10%, 30 Ω ±10%

Output Polarity: +, -, +/-, -/+

Test Duration: 0.8 s～999.9 s

Test Times: 1c～60000c

Output Mode: Source Output / Coupled Output

Resolution: 1°

Phase: Asynchronous or synchronous 0°～359°

Coupling: Built-in single-phase three-wire coupling

Coupling: AC MAX 260 V/16 A; DC MAX 220 V/16 A

IEC Standard: Built-in, directly call out

Coupling Switching Mode: Auto

- Positive and negative polarity can be switched

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- Built-in RJ45 interface, remote control (optional)

- Phase angle asynchronous or 0-360° free setting

- IEC61000-4-12/GB/T17626.12

- IEC255-22-1

- GB16917.1
