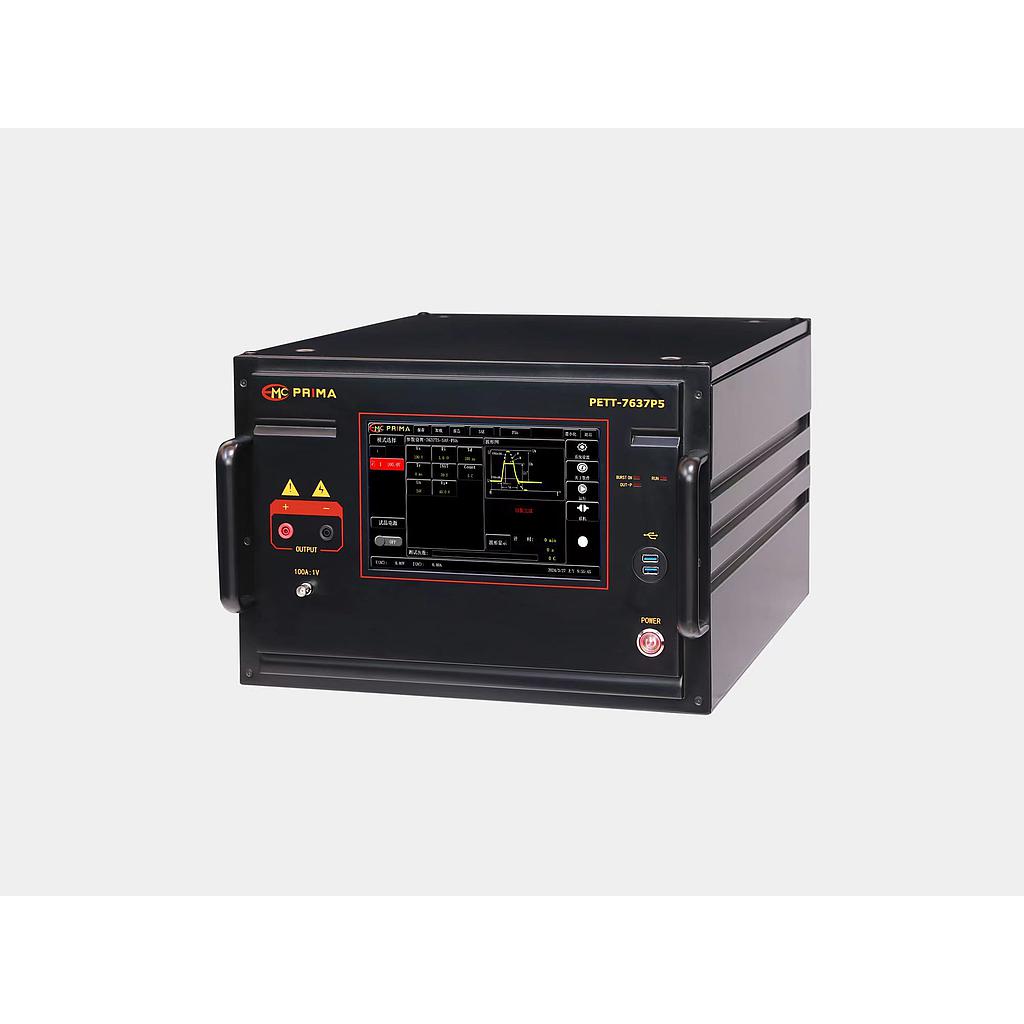

EMC Prima PRMTP5 Load Dump Simulator

Pulse 5a – 12 V, 24 V/DC

Output Voltage (Us):

12 V: 40 V～105 V

24 V: 40 V～205 V

Voltage Resolution/Voltage Step: 1 V

Voltage Accuracy: ±5%

Output Impedance (Ri):

12 V/DC: 0.5～10 Ω

24 V/DC: 0.9～10 Ω

Source Internal Resistance Resolution: 0.1 Ω

Pulse Width (Td):

12 V/DC: 40～1200 ms

24 V/DC: 100～1200 ms

Rise Time (Tr): 5～10 ms

Time Interval: 30～9999 s

Times: 1～9999C

Pulse 5b – 12 V, 24 V/DC

Output Voltage (Us):

12 V/DC: 40 V～105 V

24 V/DC: 100 V～205 V

Clamping Voltage (Us): 15-100/10～205 V/20～Us

Voltage Resolution/Voltage Step: 1 V

Output Impedance (Ri):

12 V/DC: 0.5～10 Ω

24 V/DC: 0.9～10 Ω

Source Internal Resistance Resolution: 0.1 Ω

Pulse Width (Td):

12 V/DC: 40～1200 ms

24 V/DC: 100～1200 ms

Rise Time (Tr): 5～10 ms

Time Interval: 30～9999 s

Times: 1～9999C

The PRMTP5 car load dump interference simulator is specially used for the immunity test of automotive electronics. This experiment simulates the transient phenomenon of load dump. That is, it simulates the transient phenomenon generated when the battery is disconnected (power-deficient state), the AC generator is generating charging current, and there are still other loads on the generator circuit.

- 10.1-inch color touch screen operation

- Adopt imported program-controlled high-voltage power supply, stable performance

- Can generate limited load dump pulse

- Built-in adjustable source impedance

- Built-in RJ45 and RS232 interfaces can print reports remotely

- Pulse duration can reach up to 1200ms (internal resistance 2Ω)

- Built-in 60V/30A coupling Networks

- ISO 16750-2

- ISO 7637

- SAE J1113-11

- GB/T21437.2

- GMW3100

- 36-00-808/-K

- MES-PW-67600

- 28401NDS02

- ES-XWT-1A278-AC
