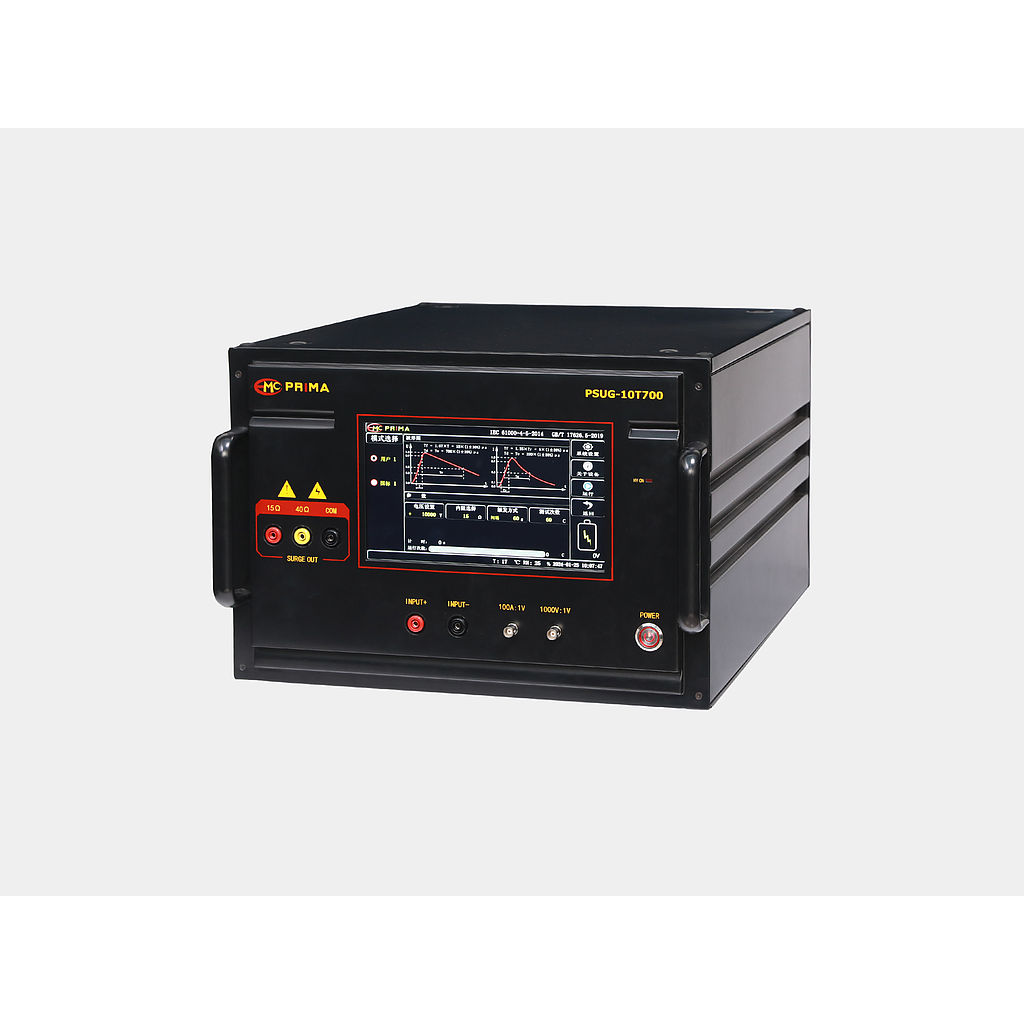

EMC Prima PSUG-10T700 Surge Simulator (200V～±10000V ±10%)

Open Circuit Voltage: 200 V～±10000 V ±10%

Rise Time: 10 μs ±30%

Duration: 700 μs ±20%

Short Circuit Current: 5 A～250 A ±10%

Rise Time: 5 μs ±20%

Duration: 320 μs ±20%

Polarity: +, -, +/-, -/+

Output Impedance: 15 Ω, 40 Ω ±10%

Step Voltage: 0～10000 V

Surge Interval: 0～9999 s

Surge Times: 1～9999c

Trigger Mode: Manual, External, Interval Trigger

- Positive and negative polarity can be switched

- 10.1 inch color touch screen operation

- positive and negative polarity arbitrary conversion

- Chinese and English can be switched

- custom, boost and standard mode

- Built-in RJ45 interface, remote control (optional)

- Can be connected to an oscilloscope via a coaxial line to measure waveforms in real time

- IEC/EN60664

- GB/T17626.5/IEC61000-4-5

- ITU K20

- ANSIC62.41/45

- GB/T16927.1

- IEC/EN 61643-1
