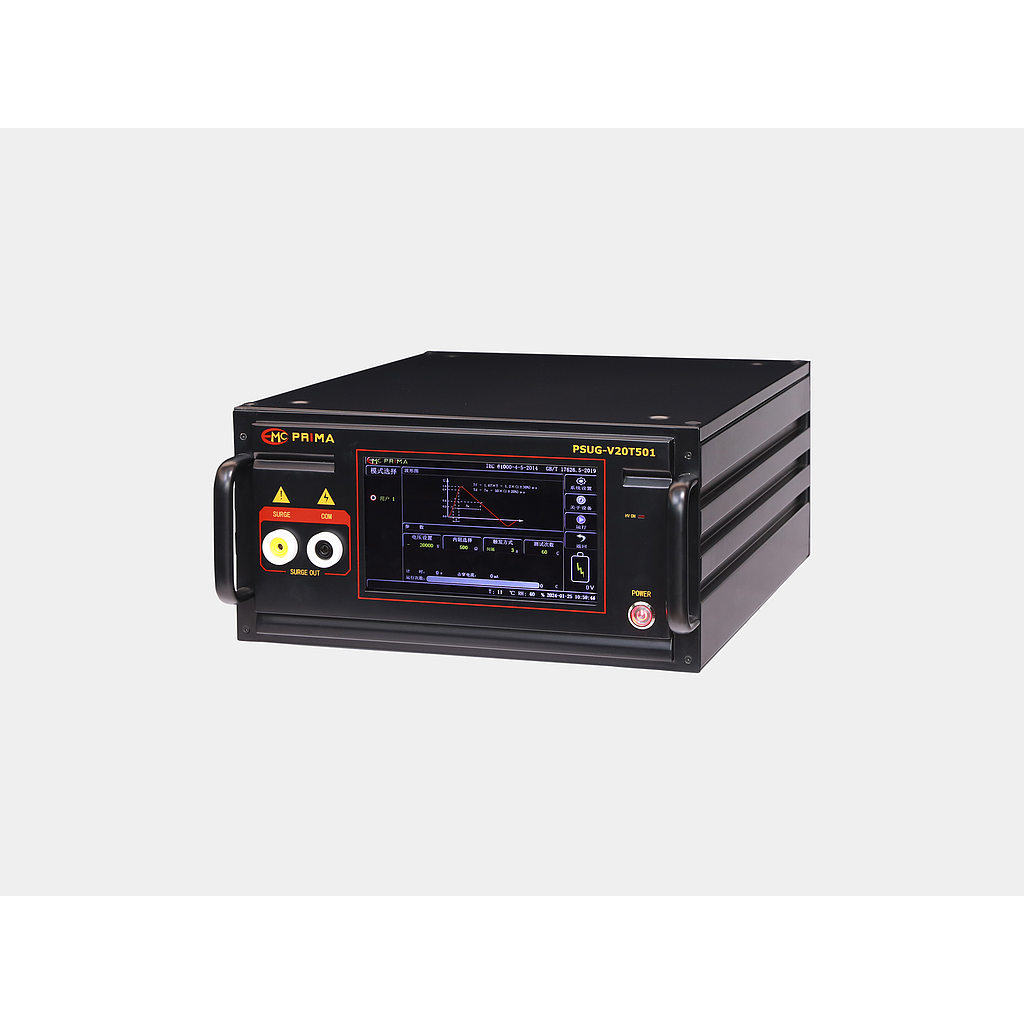

EMC Prima PSUG-V20T501 Impulse Voltage Generator (0.3 kV～20.0 kV ±10%)

Impulse Voltage: 0.3 kV～20.0 kV ±10%

Voltage Resolution: 0.1 V

Rise Time: 1.2 μs ±30%

Duration: 50 μs ±20%

Output Voltage Polarity: +, -, +/-, -/+

Output Impedance: 500 Ω

Step Voltage: 0～2.5 kV

Interval Time: 3 s～9999 s

Test Times: 1～9999c

Energy Storage Energy: 0.5 J ±10%

Failure Detection: Built-in

Test Product Breakdown Detection: Built-in

Breakdown Current: 50 mA～1200 mA

Trigger Mode: Interval Trigger

- Positive and negative polarity can be switched freely

- One-touch switch between Chinese and English modes

- 10.1-inch color touch screen operation

- The maximum test voltage can reach 20.0kV

- Imported program-controlled high-voltage power supply, stable

- Automatic switching of test mode in all gears

- Built-in RJ45 and RS232 interfaces, remote control (optional)

- IEC60255-5

- GB14711

- GB/T17626.5/IEC61000-4-5

- IEC/EN 61010
