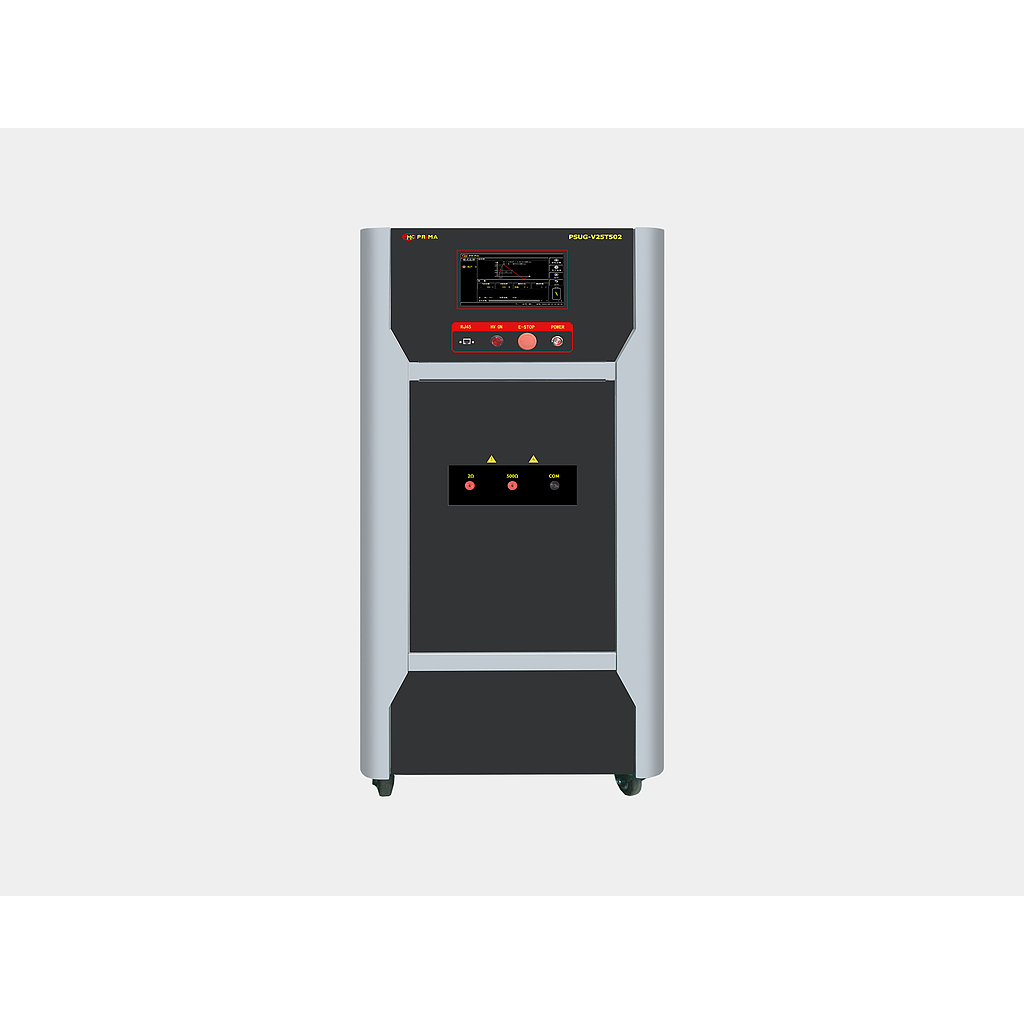

EMC Prima PSUG-V20T502 Impulse Voltage Generator (0.5～25 kV)

Impulse Voltage: 0.5～25 kV

Step Voltage: 100 V

Rise Time: 1.2 μs ±30%

Duration: 50 μs ±20%

Output Voltage Polarity: +, -, +/-, -/+

Trigger Mode: Automatic/Manual, External Trigger

Output Impedance: 500/2 Ω

Test Times: 1—9999C

Interval Time: 10—9999S

The performance of impulse voltage generator products fully meets or exceeds the relevant requirements of international standard IEC60255 and national standard GBT16917.1, and is mainly used to evaluate the pulse withstand voltage and anti-interference capabilities of electronic devices. Whether in terms of performance indicators or quality reliability, it is an electromagnetic compatibility test equipment that can be comparable to similar foreign products.

- Meet IEC60060-1and EC60664-1

- Positive and negative polarity can be switched freely

- One-touch switch between Chinese and English modes

- 10.1-inch color touch screen operation

- The maximum test voltage can reach 20.0kV

- Imported program-controlled high-voltage power supply, stable

- Automatic switching of test mode in all gears

- Built-in RJ45 and RS232 interfaces, remote control (optional)

- IEC60060-1

- IEC60664-1

- IEC60255

- GB/T16917.1

- IEC62477-1:2012+A1:2016

- GB14711
