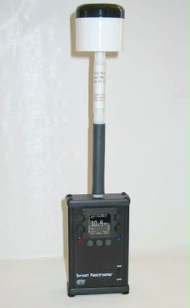

EMCTD PI-01-BP Isotropic Ultra Broadband Electric Field Probe (0.1– 100 MHz, Stopband: 800-6000 MHz; 1 – 800 V/m)

 • Frequency range: 100 KHz-100 MHz (Pass band); 800 MHz- 6 GHz (Stop band)

• Diode based: 3-Axial isotropic sensor, composite output.

• Field strength range 1 – 800 V/m.

• Power density range: 0.27 uW/cm2 – 170 mW/cm2.

• Probe power nonlinearity: Less than 1.5 dB.

• Rotational isotropicity: +/-1 dB.

• Passband frequency response: +/- 1 dB (200 KHz-50 MHz), - 6 dB (100 KHz and 200 MHz).

• Stopband rejection: 14 dB (@900 MHz), 18 dB (@2.4 GHz), 20 dB (@5.7 GHz).

• Calibration accuracy: +/-1 dB.

• Temperature: 0-50°C,

• Humidity: RH 10-90%, non-condensing.

• Temperature error: <0.05 dB/°C

• Calibration: UK NPL (UK National Physics Lab) traceable.

• Small size: LxD: 9.0x2.25 inch, 230x58 mm.

• Weight: 0.2 Lb., 100 g.

• Supporting equipment: RFP-05M meter.
