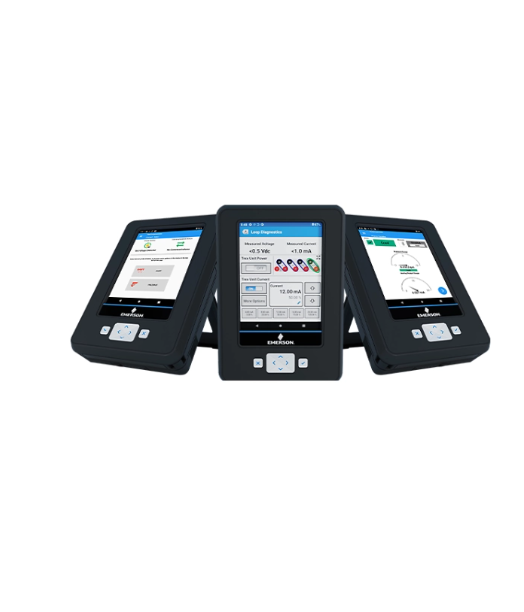

Emerson AMS HART and Fieldbus Communication Devices

Processor: 800 MHz ARM Cortex-A8/NXP

Internal storage: 2 GB, with support for a 32 GB expansion memory card

RAM: 512 MB DDR3 SDRAM

Display: 5.7-inch (14.5 cm) VGA resistive touchscreen

Battery life: More than 8 hours of operation

Operating ambient temperature: –20 to +55 °C (–4 to 122 °F)

Protection rating: IP54

Impact resistance: Passes a 1 m drop test onto a concrete surface.

Weight: Approx. 1,330 g (2.9 lb)

Explosion protection certifications: ATEX, FM, CSA, and IECEx

Wireless connectivity: Bluetooth, Wi-Fi, NFC

Communication modules: HART and Fieldbus

Loop power module: Supplies 24 V loop power to the device.

mA measurement module: Measures current in a 4–20 mA loop, with a resolution of 0.1 mA
