Function: Wireless high voltage electricity testing, high voltage line voltage test
Voltage Level Display 380V, 6.6kV, 10kV, 35kV, 66kV, 110kV, 220kV
Voltage To Earth Range: 0.1kV~150kV ( to earth voltage)
Electricity Testing Voltage Range: 380V~220kV
Voltage to Earth Display Accuracy: ±15%±5dgt
*Probe Length: 110mm (Model A can be replaced with hook or pin probe according to site condition)
Wireless Frequency: 433Hz Wireless Transmission Distance Straight-line transmission distance about 30m
LCD Size: 47mmX28.5mm (with backlight)
Power: Host: DC6V Alkaline dry battery (LR03 1.5VX4PCS); Detector: DC9V, alkaline dry battery (6LR61 9V)
Electricity Testing Indication: When electricity testing, the detector has audible and visual indication function, will be red double flashinglight indication and "Du-du-du" buzzing sound
Display Speed: 2 times/second
Data Storage: 99 groups (Power down or replace the battery will not lose data)
Automatic Shutdown: 10 minutes without any operation after starting up, the detector will shutdown automatically
Rated Current:
Detector: 75mA max;
Receiver: 35mA max
Hook Caliber φ50mm
Instrument Dimension
Receiver: 78mmX165mmX42mm;
Detector: 300mmX237mmX85mm
Instrument Weight: About 6KGS(include accessories)
Insulation Rod Length: Max Diameter:Ø45mm;
Length:
Contraction state 850mm;
Stretched state 4300mm

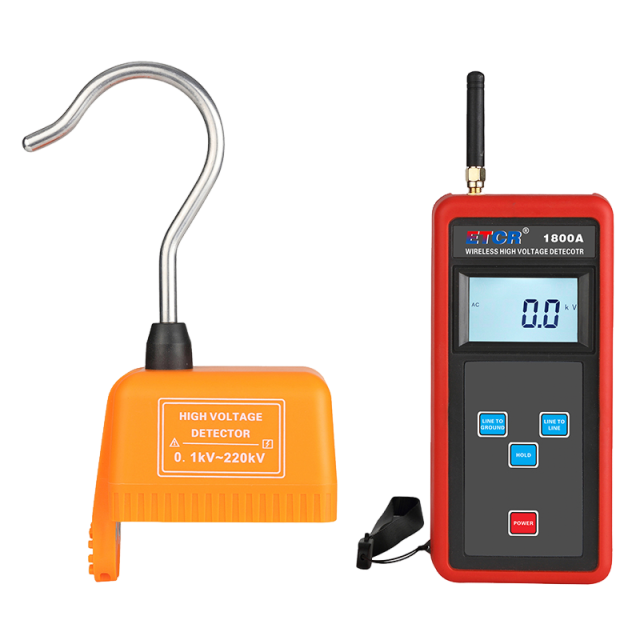

Accessories: Detector:1PCS; Receiver: 1PCS, Hook probe: 1PCS; Pin probe: 1PCS(only for A model); Insulation Rod: 1PCS; USBLR03 battery: 4PCS; 6LR61 battery: 1pcs; communication cable:1PCS; Tool bag: 1PCS
