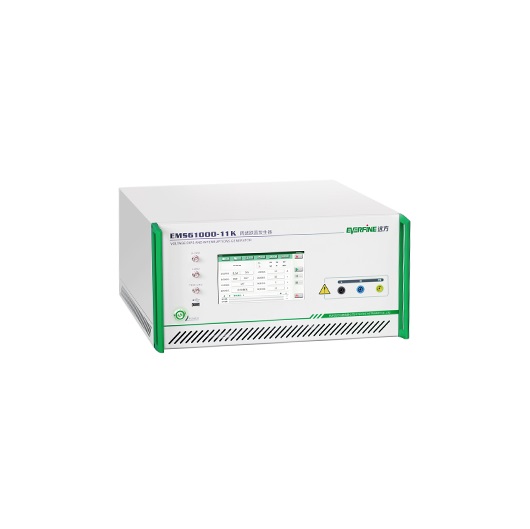

EVERFINE EMS61000-11K Voltage Dips and Interruptions Generator
Manufacturer: EVERFINE Model: EMS61000-11K Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Voltage dip level: 0%~120%
Starting phase (Dip/Rise): 0º~359º
Rise / fall time: 1μs~5μs (100Ω Resistive load)
Dips duration: 1ms~9999ms/0.001s~9999s/1~9999 T/2 (Arbitrary switching)
Repetition time: 0ms~99999ms/0s~99999s/0~99999 T/2 (Arbitrary switching)
Repetition count: 1~99999
Trigger mode: Manual / Auto / External trigger
Output current capacity: Max. continuous current of 16A, 20A current limiting protection
Peak impulse current driving capability: 500A
EUT capacity: AC: 90V~250V, 47Hz~63Hz
Communication: RJ45, Remote control
