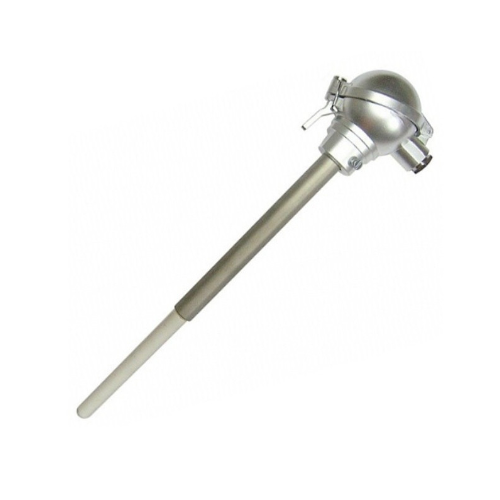

Thermocouple options:
+ Type K, Class 1, mineral insulated, 0...+1150 °C, peak +1250 °C, Inconel 600 insert Ø4,5 mm (standard)
+ Type S, Class 1, wire Ø0,35 mm, +600...+1400 °C, peak +1600 °C
+ Type R, Class 1, wire Ø0,35 mm, +600...+1400 °C, peak +1600 °C
+ Type B, Class 2, wire Ø0,35 mm, +800...+1600 °C, peak +1800 °C
+ Type C, Class 2, wire Ø0,50 mm, 0...+2000 °C, peak +2300 °C
Holding tube options:
+ 5: AISI321 / EN1.4541 steel
+ 7: AISI446 / EN1.4762 steel
+ 8: AISI310 / EN1.4841 steel
+ Ø15×2 mm or Ø22×2 mm, length H
Ceramic tube options:
+ C610 porcelain (for TC type K)
+ C799 alumina (for TC type S, R, B, C)
+ Ø10 mm (for Ø15 holding tube)
+ Ø15 mm (for Ø22 holding tube)
+ Total length L, free length L - H
Terminal head: spherical with hinged cover, aluminium alloy, protection IP54
+ small SUZ (for holding tube Ø15 mm)
+ large BUZ (for holding tube Ø22 mm)
Terminal block option: -CS: ceramic, screw connections
Transmitter option: -I-T1-T2: 4-20 mA, range T1-T2 °C
