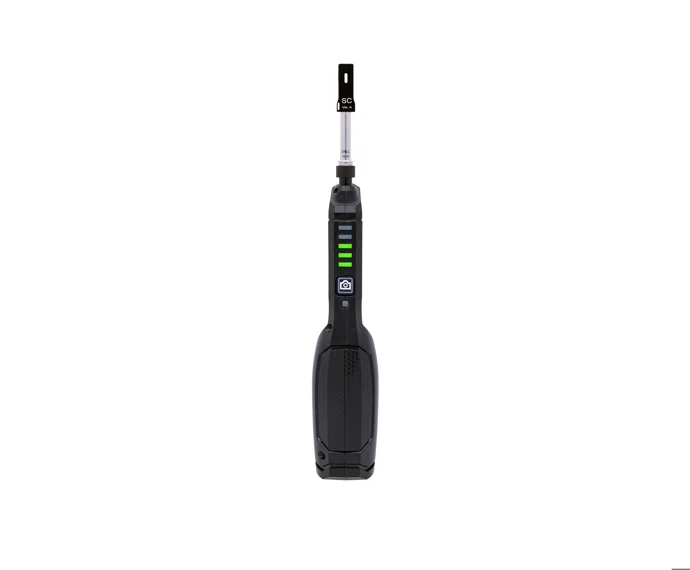

EXFO FIP-200 Connector Checker

SPECIFICATIONS

End-to-end inspection and analysis time:  7 seconds

Field of view :  Single-fiber: 0.75 mm × 0.75 mm

Pass/fail analysis :  5-bar rating for FTTH networks

Camera sensor:  5 megapixels

Light source :  Blue LED at 460 ±10 nm

CPU :  1.4 GHz dual core

Connectivity :  Bluetooth® and WiFi

Battery type :  Lithium-ion polymer (Li-Po) rechargeable battery

Autonomy :  210 captures; 3h30 at 1 capture per minute

Charging time :  46 minutes to 50%; 120 minutes to 100%

Connector :  USB-C

Local storage capability :  100 single-fiber measurements

EXFO Exchange synchronization:   Yes

GENERAL SPECIFICATIONS

Size (H × W × D):   247 mm × 40 mm × 38 mm (9 3/4 in × 1 5/8 in × 1 1/2 in) a

Reach (long-reach head):   60 mm (2 3/8 in)

Weight :  137 g (0.3 lb)

Temperature Operating:

Storage:

–10 °C to 40 °C (14 °F to 104 °F)

–20 °C to 60 °C (–4 °F to 140 °F)

Humidity range:   0 % to 95 % non-condensing

Supported languages (user manual):   English, French
