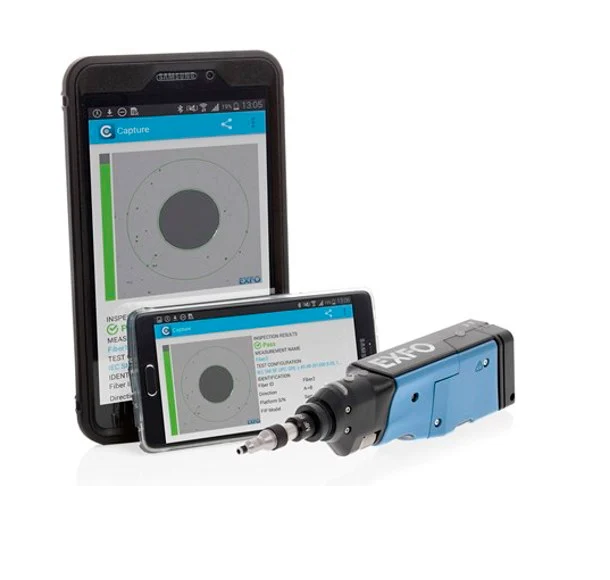

EXFO FIP-400B Wireless Fiber Inspection Scope

WiFi FIBER INSPECTION SCOPE SPECIFICATIONS (FIP-435B)

Size (H x W x D): 55 mm x 39 mm x 207 mm (2 3/16 in x 1 1/2 in x 8 1/8 in) c

Weight: 0.3 kg (0.66 lb)

Resolutio:n 0.55 µm

Camera sensor: Five-megapixel CMOS

Visual detection capability: <1 µm

Field of view

304 µm x 304 µm (high magnification)

608 µm x 608 µm (mid magnification)

912 µm x 912 µm (low magnification)

Light source: Blue LED

Lighting technique: Coaxial

Capture button: Available on all models

Magnification button: Available on all models

Digital magnification: Three levels

Connector: Micro USB

Connectivity: WiFi 802.11g

Frequency band: 2.4 GHz

Smart device OS compatibility : Android 4.4 and above, iOS 9 and above

Power: 1 x removable battery

Autonomy: ≥8 hours

Recharge time:  ≤ 4 h

Distance range : 2.5 m (8.2 ft)
