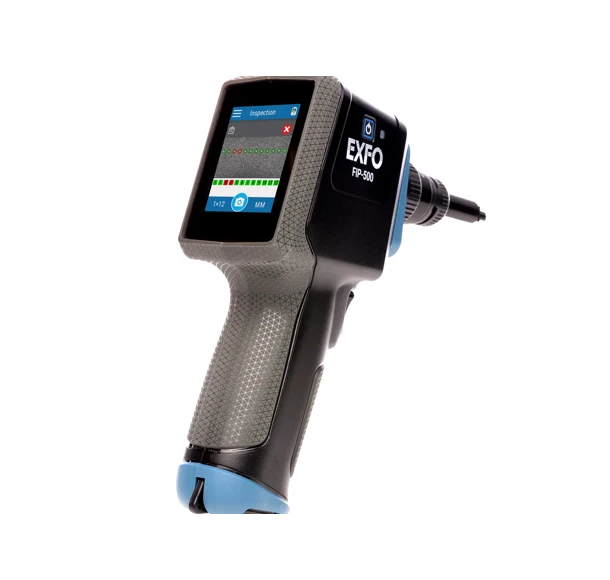

EXFO FIP-500 Fiber Inspection Scope

SPECIFICATIONS

End-to-end inspection and analysis time: MPO-12: 10 s;  MPO-24: 15 s;  Single-fiber: 4 s

Field of view: Multi-fiber: 2.03 mm × 5.16 mm; Single-fiber: 0.75 mm × 0.75 mm

Pass/fail analysis: IEC 61300-3-35 ED.3(2022) b, IEC 61300-3-35 (2015), user-set criteria

Camera sensor: 2 sensors of 5 megapixels

Light source: 2 violet LEDs at 415 ±15 nm

Lighting technique: Coaxial, pulsed

Display: 2.4 in IPS color LCD 166 dpi + capacitive touchscreen

CPU: 1.4 GHz dual core

Connectivity: Bluetooth®, WiFi and USB-C

Battery type: Lithium-ion polymer (Li-Po) rechargeable battery

Autonomy: 11 hours

Connector: USB-C

Local storage capability: 10 000 single-fiber connectors measurements or 5000 duplex-fiber connectors measurements or2000 multi-fiber connectors (MPO 12) measurements. The available memory for storage is 1.2 GB (on the entire system’s 2 GB)

GENERAL SPECIFICATIONS

Size (H × W × D):  196 mm × 230 mm × 59 mm (7 3/4 in × 9 1/16 in × 2 5/16 in)

Reach: 99 mm (3 15/16 in)

Weight : 580 g (1.28 lb)

Temperature

Operating: –10 °C to 40 °C (14 °F to 104 °F)

Storage: –20 °C to 60 °C (–4 °F to 140 °F)

Humidity range: 0 % to 95 % non-condensing

Supported languages: Chinese (Simplified), English, French, German, Japanese, Korean and Spanish
