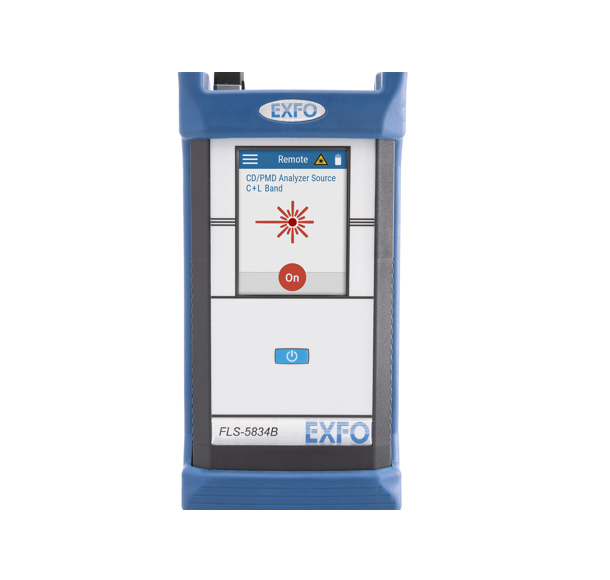

EXFO FLS-5834B CD/PMD Analyzer Source

SPECIFICATIONS (TYPICAL)

Center wavelength (nm): 1580 ±10

Output power (dBm): 7

Peak spectral density (dBm/nm): > —12.5

Power stability (10 minutes) (dB): < 0.075

Modulation frequency (MHz): 100

GENERAL SPECIFICATIONS

Size (H x W x D): 194 mm x 99 mm x 40 mm (7.6 in x 3.9 in x 1.6 in)

Weight: 0.5 kg (1.1 lb)

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: –20 °C to 50 °C (–4 °F to 122 °F)

Relative humidity: 0 % to 90 % non-condensing

Details

Datasheet

Read more
