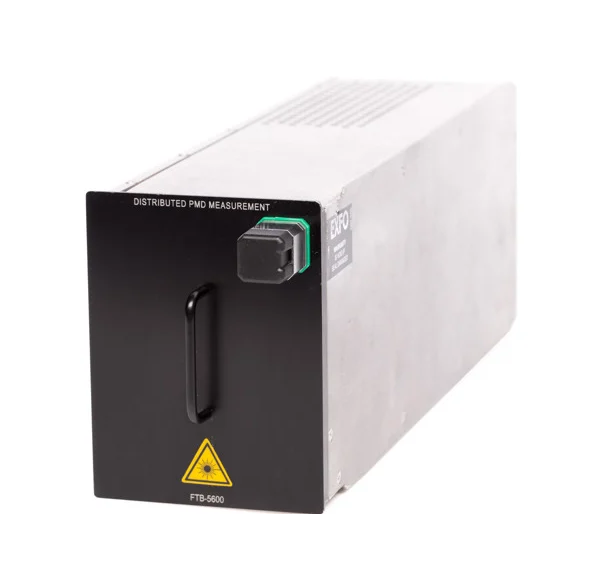

EXFO FTB-5600 Distributed Pmd Analyzer (1520 to 1580 nm)
Manufacturer: EXFO Model: FTB-5600 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
TECHNICAL SPECIFICATIONS
Wavelength range (nm): 1520 to 1580
Maximum cumulative PMD (ps): ≥20
Minimum measurable cumulative PMD (ps): 0.1
Cumulative PMD uncertainty (ps): ± (0.1 + 5 % x PMD)
PMD dynamic range (dB): 15
Distance uncertainty (OTDR) (m): ±10
GENERAL SPECIFICATIONS
Size (H x W x D): 96 mm x 75 mm x 281 mm (3 ¾ in x 3 in x 11 in)
Weight: 2 kg (4.4 lb)
Temperature
Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: —40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity: 0 % to 93 % non-condensing
