Switch :1×8
Insertion loss (dB):1.2
Operating wavelength (nm): 1240 to 1680
Repeatability (dB) : ±0.02
Backreflection (dB) : –50
Crosstalk (dB) (typical): 50 (60)
Polarization-dependent loss (dB) : 0.15
Switching time (ms) : < 30
Fiber type Singlemode: 9/125 µm
Input power (damage threshold) (dBm): 27
GENERAL SPECIFICATIONS
Size (H x W x D): 22 mm x 440 mm x 203 mm (14/16 in x 17 5/16 in x 8 in)
Switch life: 1 billion (109) cycles minimum
Temperature
Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: —40 °C to 70 °C (—40 °F to 158 °F)
Maximum relative humidity: 80 % non-condensing at 40 °C

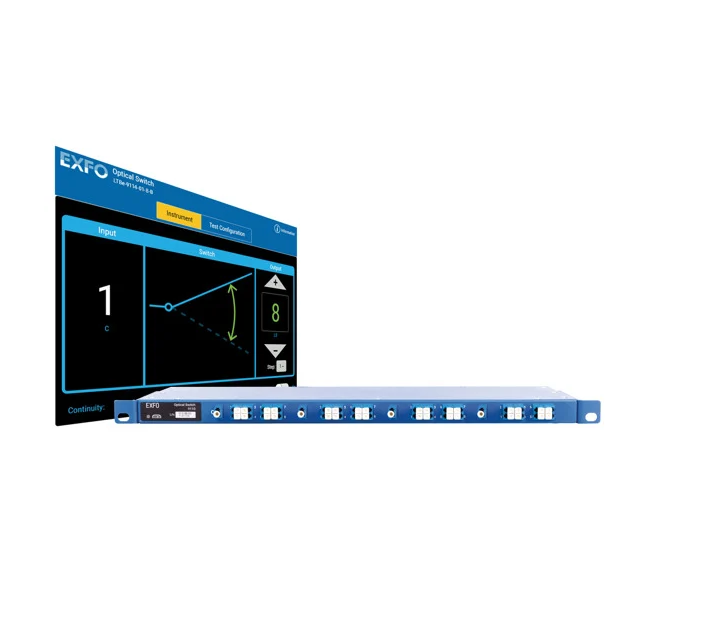

Operation: LTBe-9110 must be connected to an EXFO platform using the provided USB cable.
Supported platforms: LTB-1, LTB-2, LTB-8, LTB-12 and FTB-4 Pro.
Instrument drivers: IVI drivers, SCPI commands and REST API
Remote control: Via LTB and FTB platform services: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232
Standard accessories: USB cable, user guide g, rackmount bracket and test report
