TECHNICAL SPECIFICATIONS

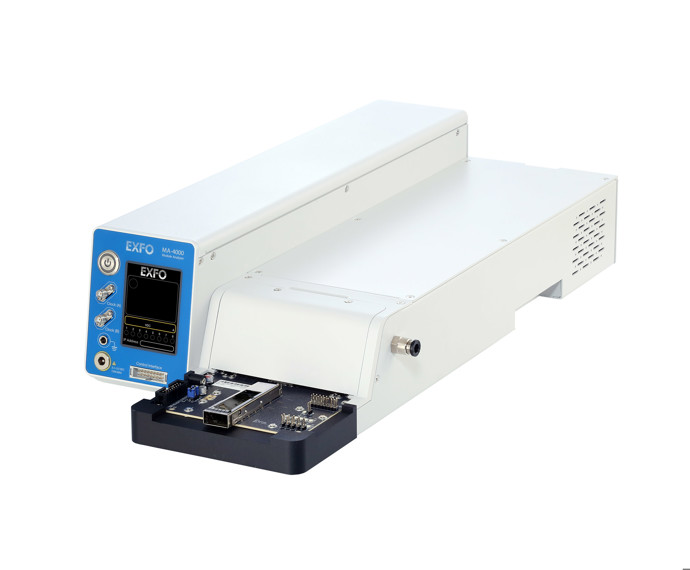

Module Analyzer
Number of channels: 8
Data rate per lane (GBd): 25.78125, 26.5625, 27.95, 28.05, 28.125, 28.9 (PAM4/NRZ); 9.95328, 10, 10.3125, 10.709, 11.3176, 12.5, 14.025, 21, 24.33024, 25 (NRZ only)
Data rate adjustment (ppm): 0 to ±300
Modulation: NRZ/PAM4
Pattern: PRBS 7/9/11/13/15/23/31, PRBS7Q-31Q (PPG and ED); PRBS16, SSPRQ, user-defined pattern (PPG only)
Maximum amplitude (mVppd): 1500
Rise time / Fall time (ps): 15/15 (20% to 80%)
PAM4 eye width (ps): 17 (zero hit)
Jitter rms (fs): 500
Sensitivity (mVppd): 200 (PAM4 26.5625 GBd); 150 (NRZ 25.78125 GBd)
Clock out
Clock output amplitude (mVppd): 400
Clock output ratio: /2, /4, /8, /16, /32, /64
Power supply
Output voltage (V): 3.1 to 3.5
Adjustable step (mV): 25
Max power (W): 15
Current monitoring: Supported
Daughter card (MCB)
Built-in PC and I/O control
GENERAL SPECIFICATIONS
Size (H x W x D): 114 mm x 220 mm x 517 mm (4.5 in x 8.7 in x 20.4 in)
Weight: ≤10 kg (22 lb)
Temperature
Operating: 5 °C to 40 °C (41 °F to 104 °F)
Storage: –20 °C to 70 °C (–4 °F to 158 °F)
Relative humidity: 20% to 80%
Diameter of tube fitting joint: 6 mm
Tube operating pressure: Up to 1.0 MPa
Power : 100/120 Vac (50/60/400 Hz); 220/240 Vac (50/60 Hz); 60 W typical/80 W max.
Access interface: Gigabit Ethernet (RJ45 port)
