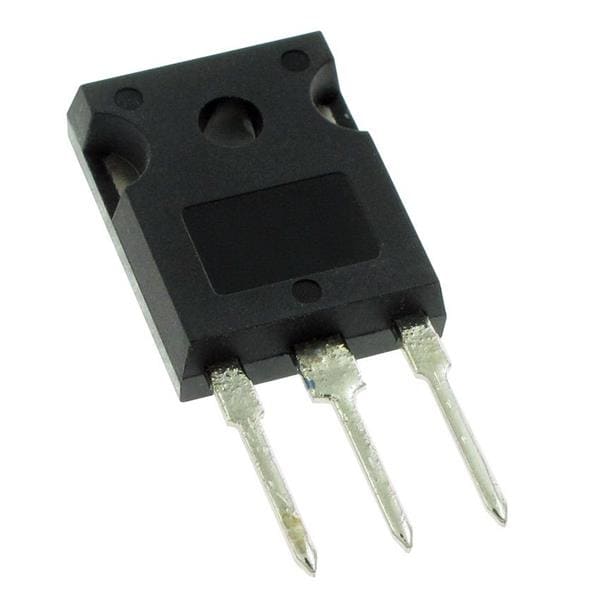

Fairchild FGY120T65SPD-F085 IGBT Transistors 650V FS Trench IGBT Gen3
Manufacturer: Fairchild Model: FGY120T65SPD-F085 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technology: Si
Unit Weight: 6.100 g
REACH - SVHC: Details
Configuration: Single
Qualification: AEC-Q101
Mounting Style: Through Hole
Pd - Power Dissipation: 882 W
Gate-Emitter Leakage Current: +/- 250 nA
Maximum Gate Emitter Voltage: - 20 V, 20 V
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Collector- Emitter Voltage VCEO Max: 650 V
Continuous Collector Current Ic Max: 240 A
Collector-Emitter Saturation Voltage: 1.5 V
Continuous Collector Current at 25 C: 240 A
