FIXTURLASER LASER KIT ALIGN-EQUIPMENT SYSTEM (850 mm)

- Case
+ Weight including all standard parts: 2,75  kg (6,06 lbs)
+ Dimension: 357 mm x 305 mm x 96 mm (14,1 in x 12 in x 3,8 in)
+Displayed resolution:  0,01 mm (0,1 mil with “inch” settings.)

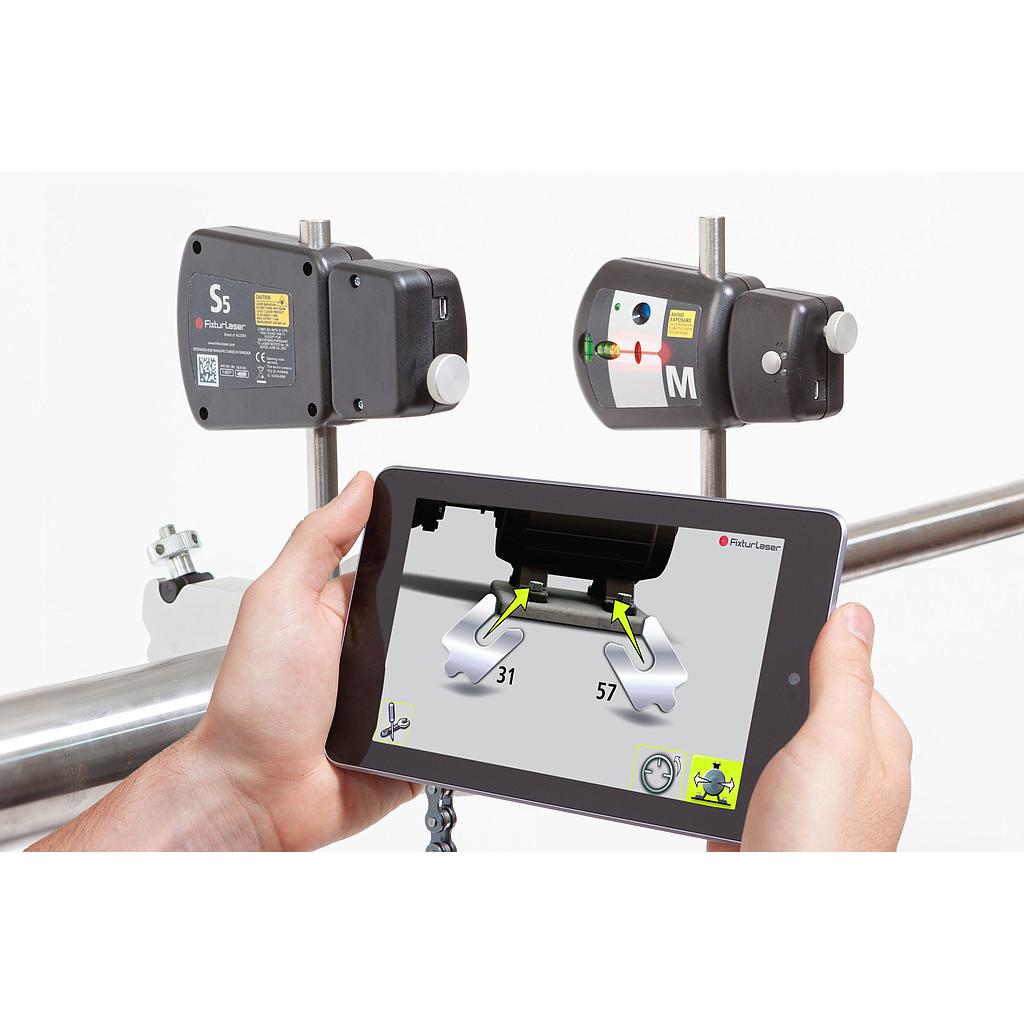

- Sensors units (M5 1-0976/S5 1-0977    )
+ Weight:    156 g (5,5 oz)
+ Dimensions: 139 mm x 79 mm x 40 mm (5,5 in x 3,1 in x 1,6 in)
+ Environmental protection: IP 20
+ Measurement distance: 70 mm - 850 mm (2,7 in - 2,8 ft)
+ Detector: PSD (Single axis)
+ Detector area: 8,5 x 0,9 mm (0,3 x 0,04 in)
+ Detector resolution: PSD (Single axis)
+ Measurement accuracy: 3% ± 0,01 mm
+ Inclinometer accuracy: ±2°
+ Wireless communication: Class I Bluetooth transceiver with multi-drop capability. BLE Bluetooth Low Energy (BT 4.0)
- Shaft brackets
+ Shaft diameter:Ø 30-150 mm (1,2 - 5,9 in)
+ Rods: 2 pcs 150 mm (5,9 in)
Include: Fixturlaser M5, Fixturlaser S5, Power supply 1 USB-pert 5 VDC, Cable Y-splitter USB A micro
