FLIR FH-669 R Multispectral Fixed Camera for Early Fire Detection (640 x 512, 69° FOV) | EMIN.ASIA

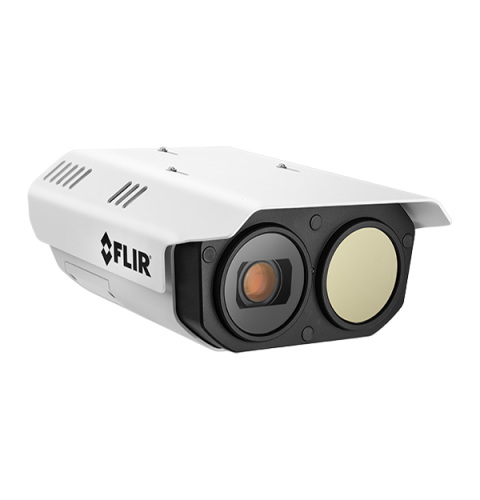

FLIR FH-669 R Multispectral Fixed Camera for Early Fire Detection (640 x 512, 69° FOV)

Name: FLIR FH-669 R Multispectral Fixed Camera for Early Fire Detection (640 x 512, 69° FOV)
Brand: FLIR

ManufacturerFLIR(View more products from this manufacturer)

ModelFH-669 R

P/N427-0102-21-00

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

General

Dimensions (L x W x H): 314 x 233 x 124 mm/12.4" x 9.2" x 4.9"

Power Consumption: Nominal: 15 W Heaters enabled, 12 VDC: 48 W Heaters enabled, all other inputs: 70 W

Surge Immunity on AC Power Lines: EN 50130-4

Surge Immunity on Signal Lines: EN 50130-4

Environmental

Humidity: 0-95% relative humidity

IP Rating (dust & water ingress): IP66 & IP67

Operating Temperature Range: -40°C to 70°C/-40°F to 158°F

Shock: IEC 60068-2-27

Storage Temperature Range: -50°C to 85°C/-58°F to 185°F

Vibration: IEC 60068-2-64

Measurement & Analysis

Analytics Features: Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier

Analytics Management: Web-based confguration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control

Measurement Accuracy: Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy; Target below 150 °C (302 °F): ± 5% accuracy; Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Error may be greater at extreme temperatures

Object Temperature Range: High Gain Mode: 0°C to 160°C 32°F to 320°F); Low Gain Mode: 0°C to 380°C (32°F to 716°F)

System Integration

Control Input/Output: Input: two dry alarm contacts; Output: two relay contacts 1A max at 24 Vac/30 Vdc Configurable between normally open and normally closed

Ethernet: 100/1000 Mbps

External Analytics Compatible: Yes

Network APIs: NEXUS® SDK NEXUS® CGI ONVIF Profile S, G, T

Streaming Resolution:

Primary Stream: Thermal: VGA (640x512), QVGA (320 x 256); Visible: 4k (3840 x 2160), 1080P (1920x1080), 720P (1280x720) & VGA 640x480

Secondary Stream: Thermal: VGA (640x512), QVGA (320 x 256); Visible: 1080P (1920x1080), 720P (1280x720) & VGA 640x480

Supported Protocols: IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF

Video Over Ethernet: Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal

Thermal Camera

Array Format (Thermal): 640 x 512

Detector Pitch (Thermal): 17 µm

f number (Thermal): f/1.4
