FLUKE FLUKE-289 Industrial Logging Multimeter with TrendCapture | EMIN.ASIA

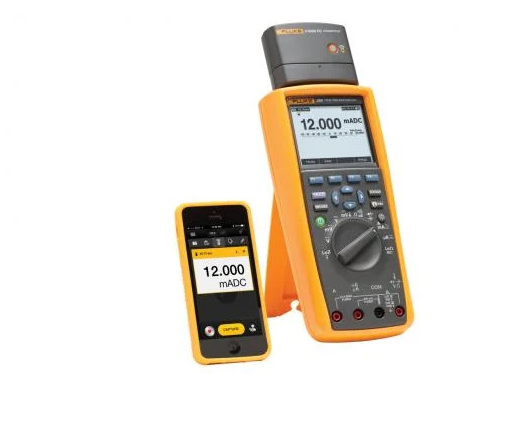

FLUKE FLUKE-289 Industrial Logging Multimeter with TrendCapture

Name: FLUKE FLUKE-289 Industrial Logging Multimeter with TrendCapture
Brand: FLUKE
Price: 981.2 USD
Availability: InStock

In Stock: 3 Unit

ManufacturerFLUKE

ModelFLUKE-289

P/N2675778

OriginUSA

Warranty12 months

USD 981.20

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

DCV: 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.025 %

ACA (True RMS): 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.4 %

DCA: 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.06 %

ACA (True RMS):500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.6%

Temperature: -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) (option probe)

R: 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ /0.05 %

C: 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF /1.0 %

F: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz /0.005%

Multiple on-screen displays: Yes

True-rms AC bandwidth : 100 kHz

DBV/dBm: Yes

Conductance : 50.00nS

Continuity beeper: Yes

Peak: 250 μS

Elapse time clock: Yes

Time of day clock: Yes

Min-Max-Avg: Yes

Duty Cycle: 0.01 % to 99.99 %

Pulse Width: 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms

Hold : Yes

Isolated Optical Interface: Yes

Auto/Touch Hold: Yes

Reading memory: Yes

Log to PC: Yes

Interval/Event Logging: Yes

Logging Memory : Up to 10,000 readings

LoZ: Yes

Low Pass Filter: Yes

Size: (HxWxL 22.2 cm x 10.2 cm x 6 cm

Weight: 870.9 g (28 oz)

Battery type: 6 AA alkaline batteries

include: Manual, 6 AA Batteries, TL71 Silicone Test Leads, AC72 Alligator Clips

Specifications

Voltage DC

Accuracy	0.025 %
Range and Resolution	50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V

Voltage AC

Accuracy	0.4 %(true-rms)
Range and Resolution	50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V

Current DC

Accuracy	0.06 %
Range and Resolution	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Current AC

Accuracy	0.61 %(true-rms)
Range and Resolution	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

Temperature (excluding probe)

Accuracy	1.0 %
Range and Resolution	-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)

Resistance

Accuracy	0.05 %
Range and Resolution	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ

Resistance 10 50 Ω (2 wire connection)

Accuracy	0.15 % + 20
Range and resolution	50.000 Ω

Capacitance

Accuracy	1.0 %
Range and Resolution	1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF Ω

Frequency

Accuracy	0.005% + 5
Range and Resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

Additional functions/features

Multiple on-screen displays	Yes
True-rms AC bandwidth	100 kHz
DBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 M
Conductance	50.00nS
Continuity beeper	Yes
Battery/Fuse access	Battery / Fuse
Peak	250 μS
Elapse time clock	Yes
Time of day clock	Yes
Min-Max-Avg	Yes
Frequency	Yes
Duty Cycle	0.01 % to 99.99 %
Pulse Width	0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold	Yes
Isolated Optical Interface	Yes
Auto/Touch Hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/Event Logging	Yes
Logging Memory	Up to 10,000 readings
Resistance Low Ohm	0.001 Ω to 50.000 Ω 10 mA source
LoZ	Yes
Low Pass Filter	Yes
