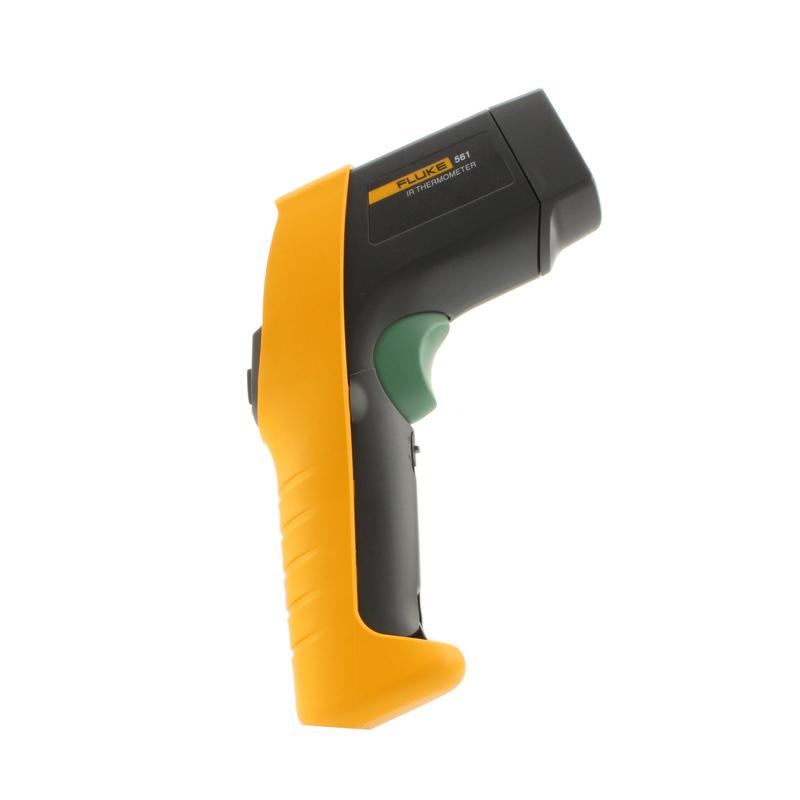

FLUKE FLUKE-561 Infrared and Contact Thermometer (550℃)

Temperature: -40 to 550 °C (-40 to 1022 ° F)

Display Resolution: 0.1°C (0.1 °F) of reading

D:S (Distance to spot size):12:1

Display Accuracy:±1.0 %

Response Time: 500 mSec (95 % of reading)

Repeatability: ±0.5 %

Spectral Response: 8 µm to 14 µm

Laser Sighting: Single point laser

Power, battery life:2 AA batteries (alkaline or NiCD)

Battery Life:12 hours

Display Hold:7 seconds

Backlit Display:Yes,

Includes:K-Type thermocouple,Hard carrying case,2 AA batteries,Users manual

Details





General Specifications
Temperature
   -40 to 550 °C (-40 to 1022 ° F)
Display Resolution
   0.1°C (0.1 °F) of reading
D:S (Distance to spot size)
   12:1
Easy Emissivity Selector
   Adjustable with three settings:
   Low (0.3), Medium (0.7). High (0.95)
Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)]
   ±1.0 % of reading ±1 % of reading or ±1 °C (±2 °F), whichever is greater below 0 °C/32 °F, ±1 °C (±2 °F) ± 0.1°/1°
Response Time
   500 mSec (95 % of reading)
Repeatability
   ±0.5 % of reading or ±1 °C (±2 °F), whichever is greater
Spectral Response
   8 µm to 14 µm
Laser Sighting
   Single point laser
Laser Shutoff
   Laser turns off above ambient temperature of 40 °C (104 °F)
Laser Power
   Class 2(II) operation; Output <1mW, wavelength 630-670 nm
Relative Humidity
   10 % to 90 % RH non-condensing, at <30 c="" 86="" f="" td="">
Power, battery life
   2 AA batteries (alkaline or NiCD)
Battery Life
   12 hours
Display Hold
   7 seconds
Backlit Display
   Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
Warranty
   2 years
Operating Temperature
   0 °C to 50 °C (32 °F to 120 °F)
Storage Temperature
   -20 °C to 65 °C (-25 °F to 150 °F)
MAX, MIN, DIF Temperatures
   Yes
Thermocouple Type K Mini Adapter Input
   Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range.
Thermocouple Type K Fabric Hook-and-Loop Fastener Pipe Probe
   Yes, with a temperature range of 0 °C to 100 °C (32 °F to 212 °F) and accuracy of ±2.2 °C (±4 °F)
HVAC Measurement Guide
   Yes

Data Sheet »
