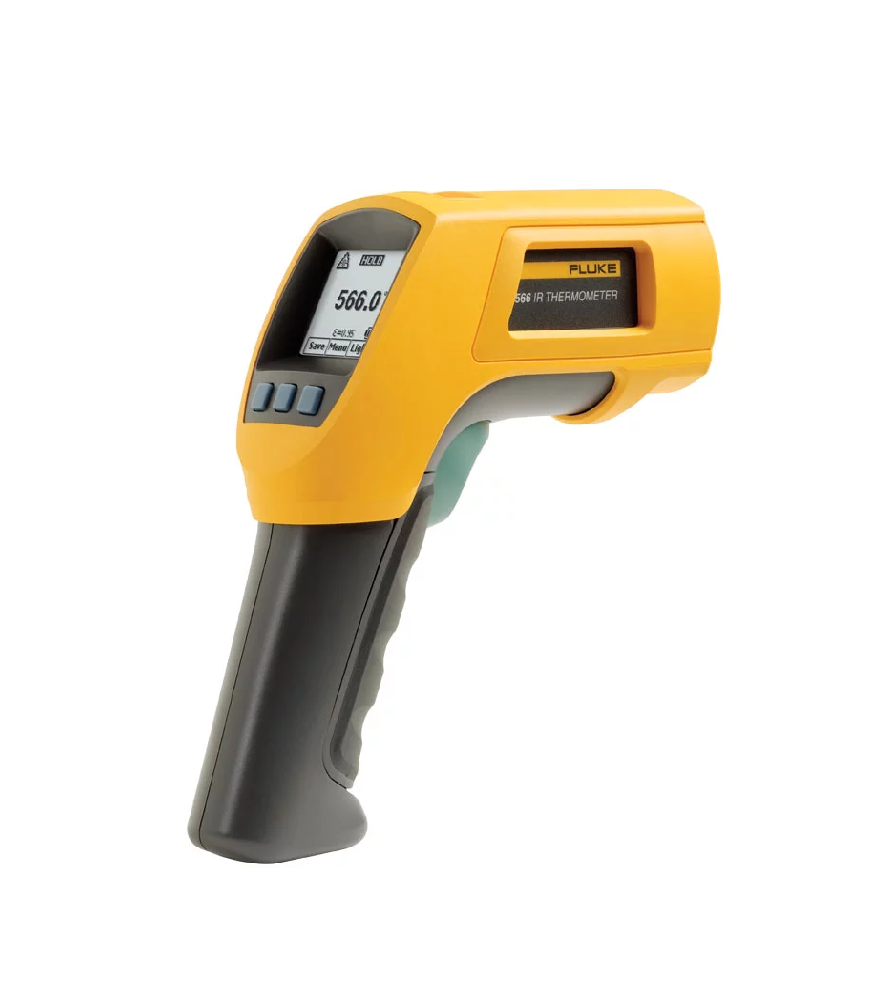

FLUKE FLUKE-566 Infrared thermometer (650℃)

Manufacturer: FLUKE
Model: FLUKE-566
P/N: 2837799
Origin: China
Guarantee: 12 Month
Contact
In stock: 10 Unit
- Request a Quotation
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

Infrared range:-40 °C to 650 °C (-40 °F to 1202 °F)

Infrared accuracy: ± 1 % or ± 1.0 °C (± 2.0 °F)

Display resolution: 0.1 °C / 0.1 °F

Infrared spectral response:8 µm to 14 µm

Infrared response time:< 500 msec

Thermocouple Type-K:-270 °C to 1372 °C (-454 °F to 2501 °F)

D:S : 30:1

Emissivity: 0.10 to 1.00

Data storage with Date/Time stamp:20 points

Hi/Low alarms: Audible and two-color visual

Min/Max/Avg/Dif:Yes

Display: Dot matrix 98 x 96 pixels with function menus

Backlight: yes

Power:2 AA/LR6 Batteries

Include: Thermocouple K bead probe 260 oC, Durable hard case, 2 AA batteries, Getting Started guide in 6 languages, User’s Manual on CD

Details

Product specifications

Infrared temperature range

566:	-40 °C to 650 °C (-40 °F to 1202 °F)
568:	-40 °C to 800 °C (-40 °F to 1472 °F)

Infrared accuracy

< 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F);
> 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater

Display resolution

0.1 °C / 0.1 °F

Infrared spectral response

8 µm to 14 µm

Infrared response time

< 500 msec

Thermocouple Type-K input temperature range

-270 °C to 1372 °C (-454 °F to 2501 °F)

Thermocouple Type-K input accuracy

-270°C to -40°C:	± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F))
-40°C to 1372°C:	± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater

D:S (distance to measurement spot size)

566:	30:1
568:	50:1

Laser sighting

Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm

Minimum spot size

19 mm (0.75 in)

Emissivity adjustment

By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01

Data storage with Date/Time stamp

566:	20 points
568:	99 points

PC Interface and cable

566:	None
568:	USB 2.0 with FlukeView® Forms software

Hi/Low alarms

Audible and two-color visual

Min/Max/Avg/Dif

Display

Dot matrix 98 x 96 pixels with function menus

Backlight

Two levels, normal and extra bright for darker environments

Trigger lock

Switchable Celsius and Fahrenheit

Power

566:	2 AA/LR6 Batteries
568:	2 AA/LR6 Batteries and USB when used with a PC

Battery life

If used continuously:

laser and backlight on,12 hours; laser and backlight off, 100 hours

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage temperature

-20 °C to 60 °C (-40 °F to 140 °F)

Bead thermocouple Type-K range

-40 °C to 260 °C (-40 °F to 500 °F)

Bead thermocouple Type-K accuracy

± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)

Tags:Infrared and Contact Thermometers: Fluke 566
