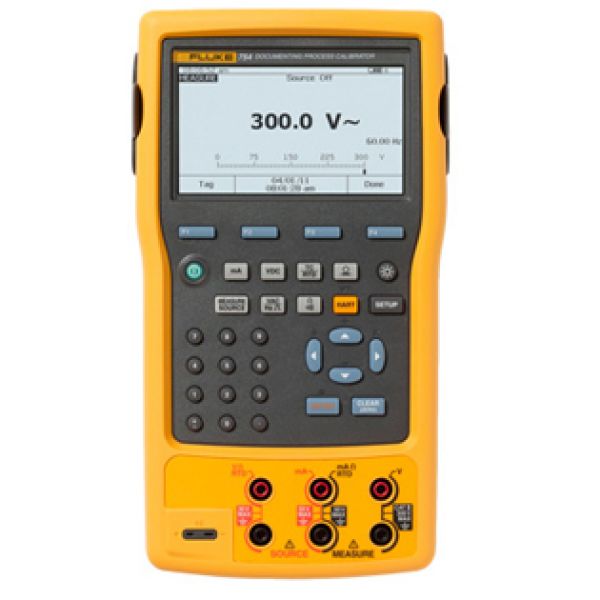

FLUKE FLUKE-754 Documenting Process Calibrator-HART (HART, Current, voltage, temperature)

Name: FLUKE FLUKE-754 Documenting Process Calibrator-HART (HART, Current, voltage, temperature)
Brand: FLUKE

In Stock: 1 Unit

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-754

P/N3405771

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Includes:

BC7240 battery charger

Li-on BP7240 battery pack

DPCTrack 2™ Sample Software

Instruction manual

NIST-traceable calibration report and data

Three sets of TP220 test probes with three sets of "extended tooth" alligator clips

Two sets AC280 hook clips

C799 Soft Field Case

USB communication cable, Fluke 754HHC HART communications cable

Measurement Accuracy
Voltage DC	Range/Resolution	1 Year		2 Years
	100.000 mV	0.02% + 0.005 mV		0.03% + 0.005 mV
	3.00000 V	0.02% + 0.00005 V		0.03% + 0.00005 V
	30.0000 V	0.02% + 0.0005 V		0.03% + 0.0005 V
	300.00 V	0.05% + 0.05 V		0.07% + 0.05 V
Voltage AC	3.000 V (40 Hz to 500 Hz) / 0.001 V	0.5% + 0.002 V		1.0% + 0.004 V
	30.00 V (40 Hz to 500 Hz) / 0.01 V	0.5% + 0.02 V		1.0% + 0.04 V
	300.0 V (40 Hz to 500 Hz) / 0.1 V	0.5% + 0.2 V		1.0% + 0.2 V
Current DC	30.000 mA	0.01% + 5 uA		0.015% + 7 uA
	110.00 mA	0.01% + 20 uA		0.015% + 30 uA
Resistance	10.000 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	100.00 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	1.0000 kΩ	0.05% + 500 mΩ		0.07% + 0.5 Ω
	10.000 kΩ	0.1% + 10 Ω		0.15% + 15 Ω
Frequency	1.00 to 110.00 Hz / 0.01 Hz			0.05 Hz
	110.1 to 1100.0 Hz / 0.1 Hz			0.5 Hz
	1.101 to 11.000 kHz / 0.001 kHz			0.005 kHz
	11.01 to 50.00 kHz / 0.01 kHz			0.05 kHz
Source Accuracy
		1 Year		2 Years
Voltage DC	100.000 mV	0.01% + 0.005 mV		0.015% + 0.005 mV
	1.00000 V	0.01% + 0.00005 V		0.015% + 0.0005 V
	15.0000 V	0.01% + 0.0005 V		0.015% + 0.0005 V
Current DC	22.000 mA (source)	0.01% + 0.003 mA		0.02% + 0.003 mA
	Current sink (simulate)	0.02% + 0.007 mA		0.04% + 0.007 mA
Resistance	10.000 Ω	0.01% + 10 mΩ		0.015% + 15 mΩ
	100.00 Ω	0.01% + 20 mΩ		0.015% + 30 mΩ
	1.0000 kΩ	0.02% + 0.2 Ω		0.03% + 0.3 Ω
	10.000 kΩ	0.02% + 3 Ω		0.03% + 5 Ω
Frequency	0.1 to 10.99 Hz			0.01 Hz
	0.01 to 10.99 Hz			0.01 Hz
	11.00 to 109.99 Hz			0.1 Hz
	110.0 to 1099.9 Hz			0.1 Hz
	1.100 to 21.999 kHz			0.002 kHz
	22.000 to 50.000 kHz			0.005 kHz
Technical Data
Data log functions	Measure functions	Voltage, current, resistance, frequency, temperature, pressure
	Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
	Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)
	Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
		Rate	4 steps/second
		Trip detect	Continuity or voltage (continuity detection not available when sourcing current)
Loop power function	Voltage	Selectable, 26 V
	Accuracy	10%, 18 V minimum at 22 mA
	Maximum current	25 mA, short circuit protected
	Maximum input voltage	50 V DC
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
	Manual step	Selectable step, change with arrow buttons
	Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Dust/water resistance	Meets IP52, IEC 529
Operating altitude	3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size	136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh
Battery life	>8 hours typical
Battery replacement	Replace without opening calibrator; no tools required
Side port connections	Pressure module connector
	USB Connector to interface to your PC
	Digital instrument (HART) connector
	Connection for optional battery charger/eliminator
Data storage capacity	1 week of calibration procedures results
90 day specifications	The standard specification interval for the 750 Seriesare 1 and 2 years.
	Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
	Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors
Degrees or % of reading - Type (α)	Range °C	Measure °C¹
		1 year		2 year
100 Ω Pt (385)	-200 to 100 100 to 800	0.07°C 0.02% + 0.05°C		0.14°C 0.04% + 0.10°C
200 Ω Pt (385)	-200 to 100 100 to 630	0.07°C 0.02% + 0.05°C		0.14°C 0.04% + 0.10°C
500 Ω Pt (385)	-200 to 100 100 to 630	0.07°C 0.02% + 0.05°C		0.14°C 0.04% + 0.10°C
1000 Ω Pt (385)	-200 to 100 100 to 630	0.07°C 0.02% + 0.05°C		0.14°C 0.04% + 0.10°C
100 Ω Pt (3916)	-200 to 100 100 to 630	0.07°C 0.02% + 0.05°C		0.14°C 0.04% + 0.10°C
100 Ω Pt (3926)	-200 to 100 100 to 630	0.08°C 0.02% + 0.06°C		0.16°C 0.04% + 0.12°C
10 Ω Cu (427)	-100 to 260	0.2°C		0.4°C
120 Ω Ni (672)	-80 to 260	0.1°C		0.2°C
Source current	Source °C			Allowable current²
	1 year	2 year
1 mA	0.05°C 0.0125% + 0.04°C	0.10°C 0.025% + 0.08°C		0.1 mA to 10 mA
500 μA	0.06°C 0.017% + 0.05°C	0.12°C 0.034% + 0.10°C		0.1 mA to 1 mA
250 μA	0.06°C 0.017% + 0.05°C	0.12°C 0.034% + 0.10°C		0.1 mA to 1 mA
150 μA	0.06 C 0.017% + 0.05°C	0.12 C 0.034% + 0.10°C		0.1 mA to 1 mA
1 mA	0.05°C 0.0125% + 0.04°C	0.10°C 0.025% + 0.08°C		0.1 mA to 10 mA
1 mA	0.05°C 0.0125% + 0.04°C	0.10°C 0.025% + 0.08°C		0.1 mA to 10 mA
3 mA	0.2°C	0.4°C		0.1 mA to 10 mA
1 mA	0.04°C	0.08°C		0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications. 2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples
Type	Source °C	Measure °C		Source °C
		1 year	2 years	1 year	2 years
E	-250 to -200	1.3	2.0	0.6	0.9
	-200 to -100	0.5	0.8	0.3	0.4
	-100 to 600	0.3	0.4	0.3	0.4
	600 to 1000	0.4	0.6	0.2	0.3
N	-200 to -100	1.0	1.5	0.6	0.9
	-100 to 900	0.5	0.8	0.5	0.8
	900 to 1300	0.6	0.9	0.3	0.4
J	-210 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 1200	0.5	0.8	0.3	0.3
K	-200 to -100	0.7	1.0	0.4	0.6
	-100 to 400	0.3	0.4	0.3	0.4
	400 to 1200	0.5	0.8	0.3	0.4
	1200 to 1372	0.7	1.0	0.3	0.4
T	-250 to -200	1.7	2.5	0.9	1.4
	-200 to 0	0.6	0.9	0.4	0.6
	0 to 400	0.3	0.4	0.3	0.4
B	600 to 800	1.3	2.0	1.0	1.5
	800 to 1000	1.0	1.5	0.8	1.2
	1000 to 1820	0.9	1.3	0.8	1.2
R	-20 to 0	2.3	2.8	1.2	1.8
	0 to 100	1.5	2.2	1.1	1.7
	100 to 1767	1.0	1.5	0.9	1.4
S	-20 to 0	2.3	2.8	1.2	1.8
	0 to 200	1.5	2.1	1.1	1.7
	200 to 1400	0.9	1.4	0.9	1.4
	1400 to 1767	1.1	1.7	1.0	1.5
C	0 to 800	0.6	0.9	0.6	0.9
	800 to 1200	0.8	1.2	0.7	1.0
	1200 to 1800	1.1	1.6	0.9	1.4
	1800 to 2316	2.0	3.0	1.3	2.0
L	-200 to -100	0.6	0.9	0.3	0.4
	-100 to 800	0.3	0.4	0.2	0.3
	800 to 900	0.5	0.8	0.2	0.3
U	-200 to 0	0.6	0.9	0.4	0.6
	0 to 600	0.3	0.4	0.3	0.4
BP	0 to 1000	1.0	1.5	0.4	0.6
	1000 to 2000	1.6	2.4	0.6	0.9
	2000 to 2500	2.0	3.0	0.8	1.2
XK	-200 to 300	0.2	0.3	0.2	0.5
	300 to 800	0.4	0.6	0.3	0.6
