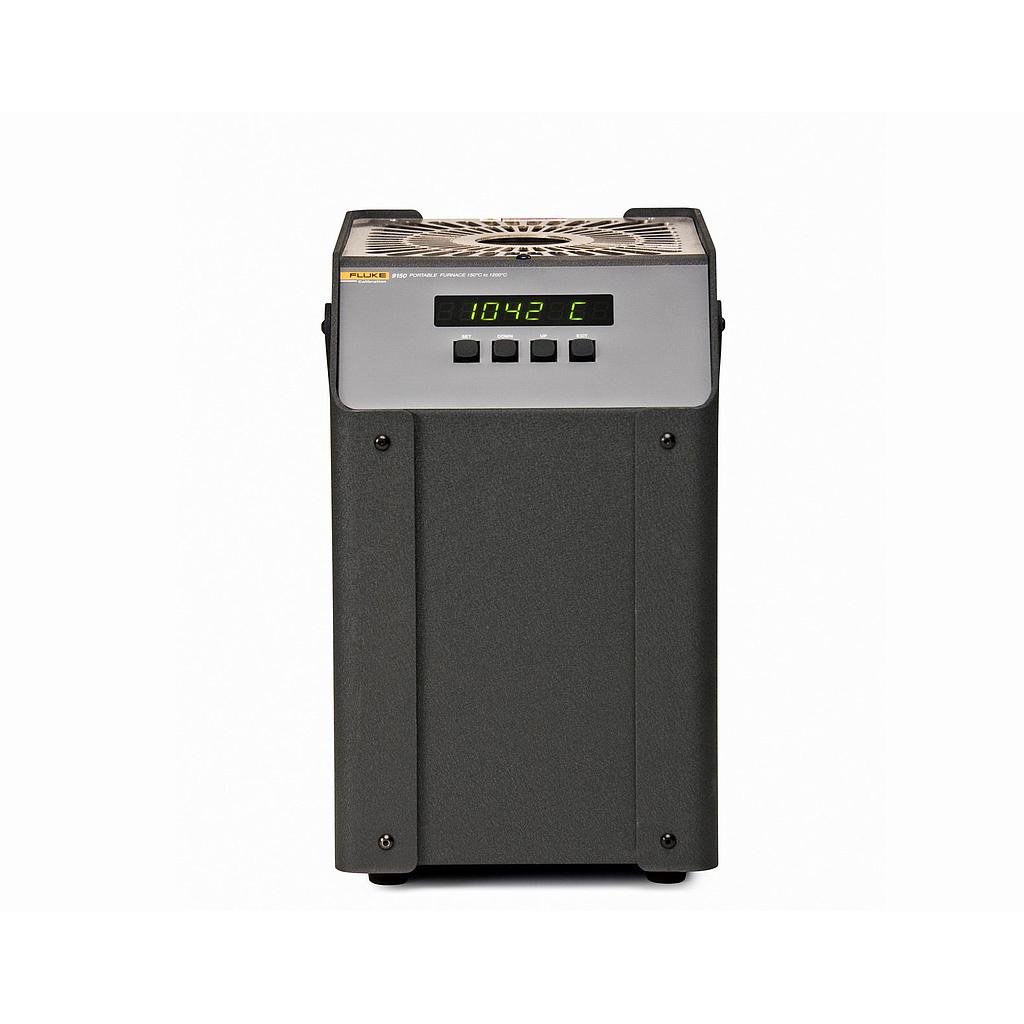

Fluke 9150 Thermocouple Furnace (150 °C to 1200 °C, ±0.5 °C)

Temperature Range: 150 °C to 1200 °C (302 °F to 2192 °F)
Display Resolution: 0.1 ° to 999.9 °, 1 ° above 1000 °
Stability: ±0.5 °C
Display Accuracy: ±5 °C
Well Diameter: 1.25" (32 mm)
Well Depth: 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator)
Heating Time: 35 minutes to 1200 °C
Cooling Time: 140 minutes with block
Well-to-Well Uniformity: ±2.5 °C (Insert “C" at 1200 °C)
Stabilization: 20 minutes
Power: 115 VAC (±10 %), 10.5 A or 230 VAC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W
Size (HxWxD): 315 x 208 x 315 mm (12.4 x 8.2 x 12.4 in)
Weight: 13 kg (28 lb.)
Include Insert A or B, or C, or D

Details

datasheet

Manual

General Specifications

Temperature Range 150 °C to 1200 °C
(302 °F to 2192 °F)
Display Resolution 0.1 ° to 999.9 °
1 ° above 1000 °
Stability ±0.5 °C
Display Accuracy ±5 °C
Well Diameter 1.25" (32 mm)
Well Depth 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator)
Heating Time 35 minutes to 1200 °C
Cooling Time 140 minutes with block
Well-to-Well Uniformity ±2.5 °C (Insert “C" at 1200 °C)
Stabilization 20 minutes
Power 115 VAC (±10 %), 10.5 A or 230 VAC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W
Size (HxWxD) 315 x 208 x 315 mm
(12.4 x 8.2 x 12.4 in)
Weight 13 kg (28 lb.)
NIST-Traceable Calibration Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000 °C, and 1200 °C
