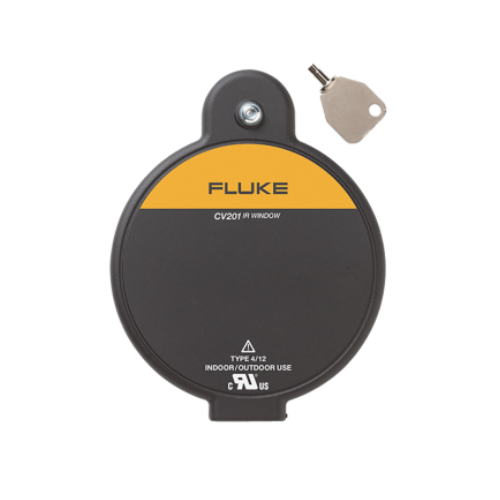

Size: 50 mm (2 in)
Voltage range: Any
NEMA environment type: Type 4/12 (indoor/outdoor)
AutoGround™: Yes
ClirVu® optic: Yes
Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
Compatible with all Fluke cameras: Yes
Jam nut locking system: Yes
Cover and fastener permanently attached: Yes
Single-hole install: Yes
Hand turn and security key door latch options: Yes
Visual inspection and fusion capable: Yes
Short/Mid/Long-wave IR and UV capable: Yes
Ratings and Testing
Arc-tested (IEEE C37.20.7): 63 kA for 30 cycles @ 60 Hz at KEMA
CSA type rating: Type 4
IP rating: IP67 at TUV
Install Actual mounting hole diameter required: 61.37 mm (2.416 in)
Overall window height: 112.9 mm (4.45 in)
Overall window width: 83.0 mm (3.27 in)
Overall window thickness: 16.2 mm (0.64 in)
Door latch: Hand Turn
Optics
Optic insert diameter: 50 mm (1.97 in)
Viewing aperture diameter: 42.93 mm (1.690 in)
Viewing aperture area: 1445 mm2 (2.24 in2)
Thickness: 2 mm (0.08 in)
