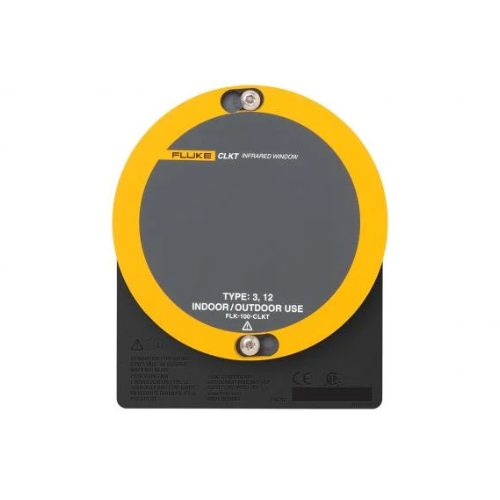

Name: FLUKE FLK-100-CLKT IR Window for Outdoor and Indoor Applications (100 mm)
Brand: FLUKE
Price: 628.0600000000001 USD
Availability: OutOfStock

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLK-100-CLKT

P/N3460439

Warranty12 months

USD 628.06

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Crystal insert diameter: 100 mm (3.94 in)

Viewing aperture diameter: 89 mm (3.5 in)

Viewing aperture area: 6322 mm2 (9.79 in2)

Thickness: 4 mm (0.16 in)

ClirVu coating: Yes

Shortwave IR capable: Yes

Midwave IR capable: Yes

Longwave IR capable: Yes

Ultraviolet (UV) capable: Yes

Visual capable: Yes

Fusion capable: Yes

Canadian Standards Association (CSA) approval: Yes

Environmental: Type 3/12

ANSI C37.20.7: 50 kA for 30 cycles @ 60 Hz

EEMACS 14-1 Type-B: 40 kA for 30 cycles @ 60 Hz

IEC 62271: 20 kA for 5 cycles @ 50 Hz

Cyclic humidity withstand: Yes

Vibration withstand: Yes

Resistance of insulating materials to 100°: Yes

Resistance of insulating material to ball pressure (Brinell): Yes

Glow-wire test 650°C: Yes

Up to 11 kV marine switchgear, indoor or outdoor: Yes

IP rating: IP65

Datasheet
