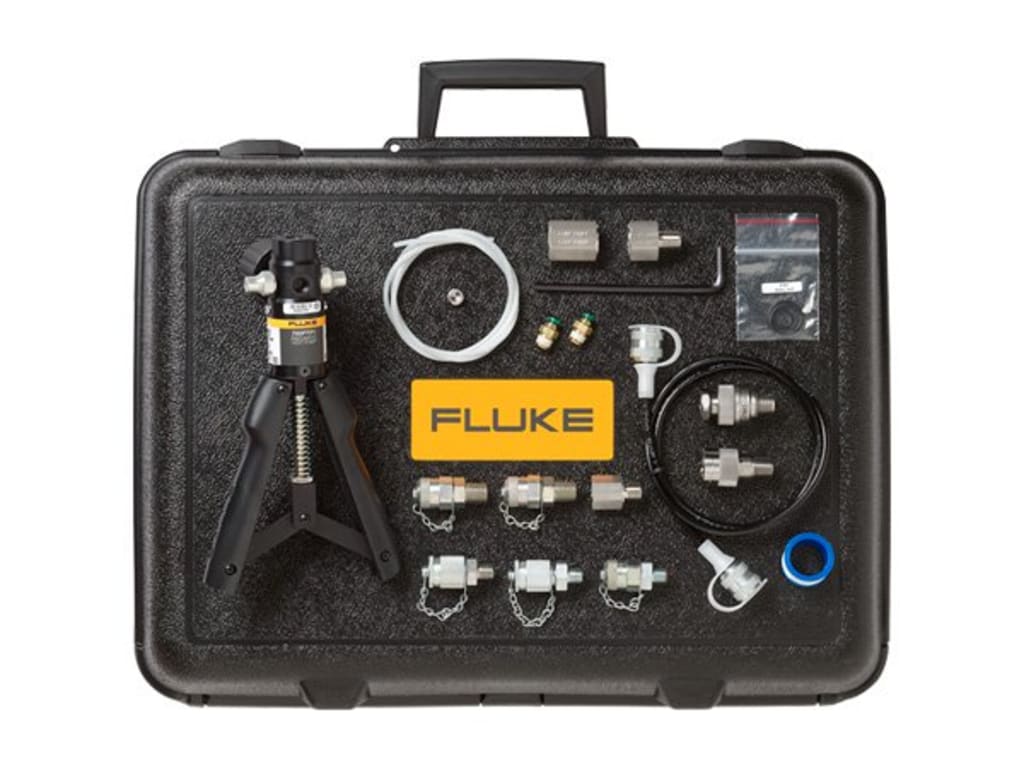

FLUKE FLK-700PTPK2/APAC Hydraulic Test Kit

- Combine with any Fluke-700G Series Gauge, 1,000 psi  (690 bar) range or less, to make a complete pressure testing kit
- Generate pressure up to 600 psi, 40 bar with the included 700PTP-1 test pump
- Connect the 700G Series gauge directly to the PTP-1 hand pump
- Includes 700HTH-1 hose kit and adapters for connecting to the pressure device to be tested
- Hard case protects pump and gauge and allows gauge to remain connected to the pump

Details



Datasheet

Manual

Option:
Fluke-700HTPK: Hydraulic Test Pressure Kit with Hydraulic Hand Pump, 1 hose kit and adapters, includes hard case
Fluke-700PTPK: Pneumatic Test Pressure Kit with Pneumatic Hand Pump, 1 hose kit and adapters, includes hard case
700G/TRACK:  Logging Software

Specifications
Model Range Resolution Accuracy Burst Pressure
Fluke-700G01 -10 to +10 inH2O
-20 mbar to 20 mbar		 0.001 inH2O,
0.001 mbar		 Positive pressure ± 0.1 % of range,
Vacuum ± 0.1 % of range		 3 psi,
210 mbar
Fluke-700G02 -1 to +1 psi,
-70 mbar to 70 mbar		 0.0001 psi,
0.001 mbar		 5 psi,
350 mbar
Fluke-700G04 -14 to 15 psi,
-0.97 to 1 bar		 0.001 psi,
0.0001 bar		 Positive pressure ± 0.05 % FS
Vacuum ± 0.1 % FS		 60 psi,
4 bar
Fluke-700G05 -14 to 30 psi,
-0.97 to 2 bar		 0.001 psi,
0.0001 bar		 120 psi,
8 bar
Fluke-700G06 -12 to 100 psi,
-0.83 to 6.9 bar		 0.01 psi,
0.0001 bar		 400 psi,
26 bar
Fluke-700G27 -12 to 300 psi,
-0.83 to 20 bar		 0.01 psi,
0.001 bar		 1200 psi,
80 bar
Fluke-700G07 -12 to 500 psi,
-0.83 to 34 bar		 0.01 psi,
0.001 bar		 2000 psi,
138 bar
Fluke-700G08 -14 to 1000 psi,
-0.97 to 69 bar		 0.1 psi,
0.001 bar		 4000 psi,
266 bar
Fluke-700G10 -14 to 2000 psi,
-.97 bar to 140 bar		 0.1 psi,
0.01 bar		 8000 psi,
550 bar
Fluke-700G29 -14 to 3000 psi,
-0.97 to 200 bar		 0.1 psi,
0.01 bar		 10000 psi,
690 bar
Fluke-700G30 -14 to 5000 psi,
-0.97 to 340 bar		 0.1 psi,
0.01 bar		 10000 psi,
690 bar
Fluke-700G31 -14 to 10000 psi,
-0.97 to 690 bar		 1 psi,
0.01 bar		 20000 psi,
1035 bar
Fluke-700GA4 0 to 15 psia,
0 to 1 bar absolute		 0.001 psi,
0.0001 bar		 ± 0.05 % of range 60 psi,
4 bar
Fluke-700GA5 0 to 30 psia
0 to 2 bar absolute		 0.001 psi,
0.0001 bar		 120 psi,
8 bar
Fluke-700GA6 0 to 100 psia,
0 to 6.9 bar absolute		 0.01 psi,
0.0001 bar		 400 psi,
27 bar
Fluke-700GA27 0 to 300 psia,
0 to 20 bar absolute		 0.01 psi,
0.001 bar		 1200 psi,
80 bar
Fluke-700RG05 -14 to +30 psi,
-0.97 to +2 bar		 0.001 psi,
0.0001 bar		 Positive pressure,
± 0.04 % of reading +.01 % of range,
Vacuum ± 0.05 % of range		 90 psi,
6 bar
Fluke-700RG06 -12 to 100 psi,
-0.83 to 6.9 bar		 0.01 psi,
0.0001 bar		 Positive pressure,
± 0.04 % of reading +.01 % of range,
Vacuum ± 0.1 % of range		 400 psi,
27 bar
Fluke-700RG07 -12 to 500 psi,
-0.83 to 34		 0.01 psi,
0.001 bar		 2000 psi,
138 bar
Fluke-700RG08 -14 to 1000 psi,
-0.97 to 69 bar		 0.1 psi,
0.001 bar		 4000 psi,
275 bar
Fluke-700RG29 -14 to 3000 psi,
-0.97 to 200 bar		 0.1 psi,
0.01 bar		 10000 psi,
690 bar
Fluke-700RG30 -14 to 5000 psi,
-0.97 to 340 bar		 0.1 psi,
0.01 bar		 15000 psi,
1035 bar
Fluke-700RG31 -14 to 10000 psi,
-0.97 to 690 bar		 1 psi,
0.01 bar		 20000 psi,
1380 bar
700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy.
For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C

Media compatibility

  • 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas
  • 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.



Mechanical Specifications
Dimensions (HxWxD) 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
Pressure connection ¼ in NPT Male
Housing/Weight Cast ZNAL 0.56 kg (1.22 lb) with holster
Display 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
Power Three (3) AA alkaline batteries
Battery life 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
