Infrared resolution: 640 x 480 (307,200 pixels)
SuperResolution: No
IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1
Field of view: 34 °H x 24 °V
Minimum focus distance: 15 cm (approx. 6 in)
MultiSharp Focus: No
Minimum span (in manual mode): 2.0 °C (3.6 °F)
Minimum span (in auto mode): 3.0 °C (5.4 °F)
Built-in digital camera (visible light): 5MP
Frame rate: 9 Hz versions
Laser pointer: Yes
LED light (torch): Yes
Digital zoom: No
Data storage and image capture
Image capture, review, save mechanism: One-handed image capture, review, and save capability
Image file formats: bmp, jpeg, is2
Battery
Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life: 2-3 hours per battery (actual life varies depending on settings and usage)
Battery charging time: 2.5 hours to full charge
Temperature measurement
Temperature measurement range (not calibrated below -10 °C): -20 °C to +650 °C (-4 °F to +1,202 °F)
Accuracy: ±2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction: Yes (both value and table)
On-screen reflected background temperature compensation: Yes
On-screen transmission correction: Yes
Line temperature graph: No
Includes:

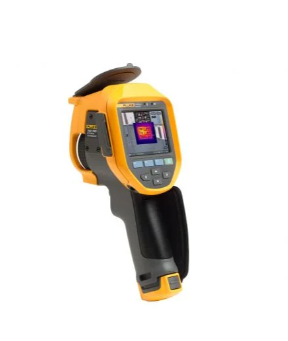

Thermal imager with standard infrared lens Fluke Ti401 PRO
AC power supply and battery pack charger (including universal AC adapters)
Two, rugged lithium ion smart battery packs
USB cable
HDMI video cable
4 GB micro SD card
Rugged, hard carrying case
Soft transport bag
Adjustable hand strap
Available by free download Fluke Connect® SmartView® desktop software and users manual
Datasheet
Manual
Every day you work hard to get the job done. Fluke gets that. For over 70 years, we have worked with people in the industrial trades. We understand that you need thermal imagers that will get the job done; rugged general use, every day thermal imagers that are easy to use, accurate and create high quality images. The Fluke Ti401 PRO is exactly this type of camera. It is an ideal camera for certified or uncertified thermographers working in:
The rugged tool you need to establish and maintain a preventive maintenance program.
Equipped with a unique combination of 640 x 480 resolution and field of view that offers the flexibility to capture measurements in tight spaces or from a distance, even the novice thermographer can capture images of critical issues before they become failures. This well priced camera offers the highest resolution in its class along with the best-selling features from Fluke. With temperature measurements up to 650 °C, it is suitable for most industrial environments.
Get the most out of your Ti401 PRO with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.
| Key features | |
|---|---|
| Infrared resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | No |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| MultiSharp Focus | No |
| LaserSharp Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| Fluke Connect app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets | Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. |
| Fluke Connect instant cloud upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect instant server upload | Yes** |
| IR-Fusion technology | Yes, adds the context of the visible details to your infrared image |
| Ruggedized touchscreen display | 3.5 inch (landscape), 640 x 480 LCD |
| Ergonomic design | Pistol-grip design for one-handed use |
| Thermal sensitivity (NETD)** | ≤0.075 °C at 30 °C target temp (75 mK) |
| Level and span | Smooth auto and manual scaling |
| Touchscreen adjustable level/span | Yes. Span and level can be easily and quickly set by simply touching the screen |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Built-in digital camera (visible light) | 5MP |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Digital zoom | No |
| Data storage and image capture | |
|---|---|
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | bmp, jpeg, is2 |
| Memory review | Thumbnail and full screen review |
| Software | Full analysis and reporting software with access to the Fluke Connect system |
| Analyze and store radiometric data on a PC | Yes |
| Export file formats with Fluke Connect software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required |
| IR-PhotoNotes | Yes - 2 images |
| Text annotations | Yes. Including standard shortcuts as well as user programmable options |
| Video recording and formats | No |
| Remote control operations | Remote display through Fluke Connect |
| Auto capture (temperature and interval) | No |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (actual life varies depending on settings and usage) |
| Battery charging time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Temperature measurement | |
|---|---|
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +650 °C (-4 °F to +1,202 °F) |
| Accuracy | ±2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Line temperature graph | No |
| Color palettes | |
|---|---|
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Smart lenses | |
|---|---|
| Macro-25 micron lens: 25 MAC2 | Yes |
| 2 x telephoto lens: TELE 2 | Yes |
| 4 x telephoto lens: TELE4 | Yes |
| Wide angle lens: WIDE 2 | Yes |
| General specifications | |
|---|---|
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (+14 °F to +122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Relative humidity | 10 % to 95 % non-condensing |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | No |
| User defined measurement boxes | 1 expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Hard Case | Rugged, hard carrying case; soft transport bag |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| RoHS compliant | Yes |
