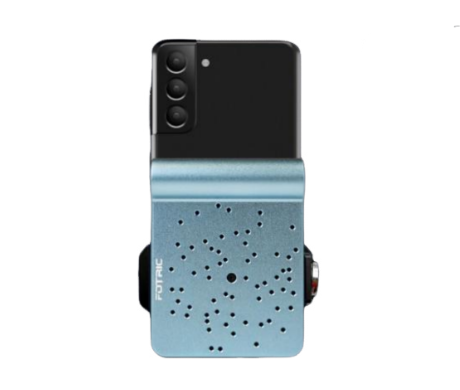

FOTRIC TD2e Geek Smartphone Acoustic Imager (2k~100kHz, 58° × 45°, 64CHs)

Basic Parameters

Microphone Channels: 64

Field of View (FOV): 58° × 45°

Localization Error: <0.05m@1m, 40kHz

Sampling Rate: 200Hz

Frame Rate: 15Hz

Working Distance: 0.3~60m

Measurement Analysis

Frequency Range: 2k~100kHz

Frequency Selection: Support manually filter frequency range

Image Display

Display Mode: Single source, multi-source, hologram

Data Connection

USB Interface: USB Type-C type; USB 2.0 compliant

Power System

Battery: 3.6V, 3200mAh rechargeable lithium battery

Battery Operation Time: Continuous work ≥ 4h

Charging Method: Support USB direct charging

Reliability and Certificates

Drop: Designed for 1m drop resistant

Physical Parameters

Size: 101mmx77mmx22mm

Weight: 200g

Casting Material: Aluminum alloy

Software

Software: Download 'FOTRIC Manisen' or 'FOTRIC Genie' from Google Play Store

Product Configuration

Standard Configuration: Main unit, USB Type-C cable, Quick start manual, Magnetic ring, Ergonomic handle, Softbag, Package box
