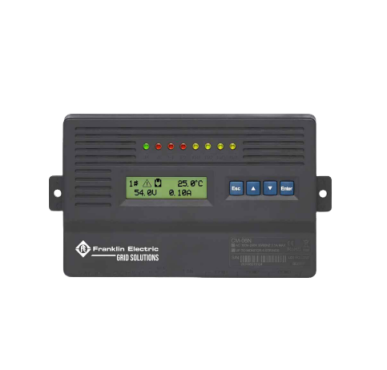

CELLGUARD™ wired battery monitoring control module, LCD Display, 48 volts DC power, manages 6 strings maximum, 300 cells on one string maximum, 360 cells on a module maximum
Operating temperature: -10°C to 50°C
Humidity: 5% to 95%
Monitoring Capability:
+ Maximum batteries on a single String: 180
+ Control module string maximum: 6
+ Control module battery maximum: 360
Battery types: 1.2V, 2V, 6V, 12V (capacity less than 3000AH)
Insulation: 2000 VAC
Weight (Coordinator): 0.3 Kg
Controller Module Communication Interfaces
+ Serial Comm. Port: RS485 Modbus/RTU
+ RJ45 Ethernet Comm. Port: SNMP, Modbus/TCP
+ RJ22 Module Comm. Port: COM1-COM3 UART
Power Requirements:
Base coordinator unit: 14-36 VDC 40W, external power supplies available
