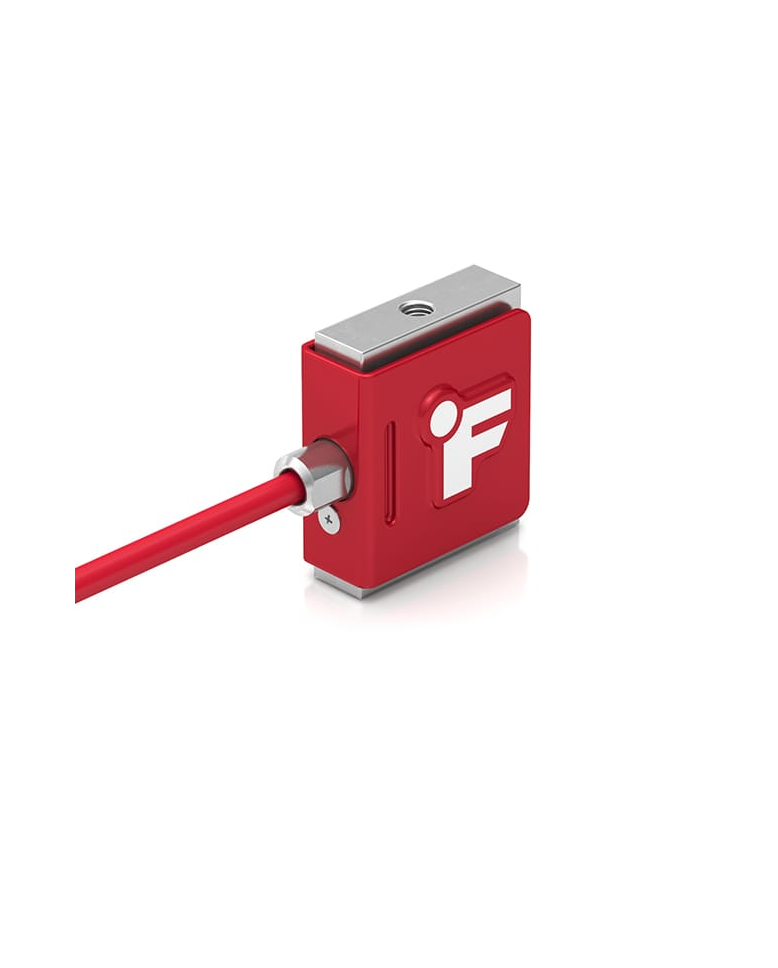

FUTEK LSB201 Miniature S-Beam Jr. Load Cell (25 lb)

PERFORMANCE

Nonlinearity: ±0.1% of RO

Hysteresis: ±0.1% of RO

Nonrepeatability: ±0.05% of RO

ELECTRICAL

Rated Output (RO): 1 mV/V nominal (250 g); 2 mV/V nominal (1–100 lb)

Excitation (VDC or VAC): 10 V max

Bridge Resistance: 350 Ω nominal

Insulation Resistance: ≥500 MΩ @ 50 VDC

Connection: #29 AWG, 4-conductor, spiral-shielded silicone cable, 5 ft [1.5 m] long

Wiring Code: WC1

MECHANICAL

Weight (approximate): 0.8 oz [22.6 g]

Safe Overload: 1800% of RO (250 g); 1000% of RO (1–25 lb); 200% tension only (50–100 lb)

Material: 17-4 PH stainless steel (body), anodized aluminum (cover)

IP Rating: IP40

Vibration Resistance: 20–2000 Hz, 0.01 g²/Hz per MIL-STD-810E

Shock Resistance: 500 g per IEC 60068-2-27

TEMPERATURE

Operating Temperature: -60 to 200°F [-50 to 93°C]

Compensated Temperature: 60 to 160°F [15 to 72°C]

Temperature Shift Zero: ±0.005% of RO/°F [0.009% of RO/°C]

Temperature Shift Span: ±0.005% of Load/°F [0.009% of Load/°C]

CALIBRATION

Calibration Test Excitation: 5 VDC

Calibration (standard): 5-point tension

Calibration (available): 5-point tension and compression

Shunt Calibration Value: 100 kΩ (250 g); 60.4 kΩ (1–100 lb)
