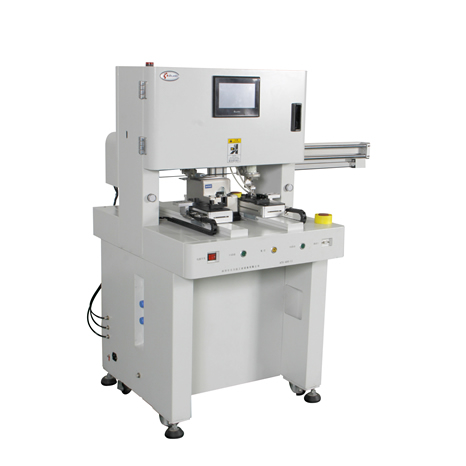

Garland ATS-410II Automatic locking screw machine
Manufacturer: Garland Model: ATS-410II Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Number of operators: 1 person or no one
Model: Floor-standing integrated
Dimensions: L*W*H——785*1280*1325(mm)
Weight: 200KG
Operating area: Protective
Reclaiming method: Vacuum suction
Number of electric batches: 1PCS
Number of feeders: 1PCS
Number of work stations: 2PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
Power supply: 220V 50HZ
Power: 320W
Applicable screw specifications: Below M3
effectiveness: 1.0s-1.2s/piece
NPL ratio: 1‰ or less (in number of screws)
speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--120*200*20(mm)
Alarm item: Sliding teeth, leaking, floating height (optional)
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 24
Control unit: 4+1 axis motion controller
Power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Front/front, front/back
Model switching time: Within 15 minutes
Data communication: USB port export (optional)
Annex: Coordinate adjustment handle
-This machine is the best-selling model of our company. In addition to the excellent lock quality,
high speed and other features, the machine is integrated up and down, the structure is very firm,
the machine shakes very little during operation, the mechanical transmission part is completely separated from the electrical control part, which is convenient for machine maintenance and maintenance.
Additional robotic arm for high-quality, high-capacity mobile phone automation assembly.
-Efficient: 1.0s-1.2s/piece
-can completely replace the manual lock screw station.
-Automatic unloading is
-versatile. It
-can store a variety of products. The screw coordinate
-structure is firm, beautiful and durable.
-Easy to learn and use
