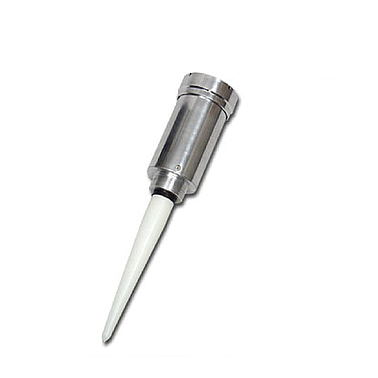

Radar Level Transmitter Power
- DC: 12 to 30 VDC, 0.07 Amps max. @ 24 VDC
Radar Level Transmitter Outputs
- Signal: 4-20 mA, 6.1 uA resolution; 750 ohms
- Communication: Optional RS232
Accuracy: ±0.25% of maximum sensor range (in air)
Frequency: 6.3 GHz (or 5.8 GHz CE)
Measurement Range: 10 inch to 50 ft (0.254 to 15.2 m)
Resolution: 0.22 in (5.7 mm)
Transmitter Power: 50 uW average
Calibration: Push-button or optional programmable
Antenna: Polypropylene over dielectric rod
Beam Angle: 12 degrees
Operating Temp: -40°C to 60°C (-40°F to 140°F)
Operating Pressure: 150 psi max
Installation Category: Class II
Process connection: 2 inch NPT
Conduit Entry: 1/2 inch NPT standard
Ingress Protection: NEMA 4 (IP65)
Approvals: FCC Part 15 - low-power communication device, CE -5.8 GHz Models
Weight: 3.6Lbs (1.63Kg)
Dimensions: 4 inch diameter x 18 inch long (10cm dia. x 45.7cm long)
Enclosure: Aluminum
