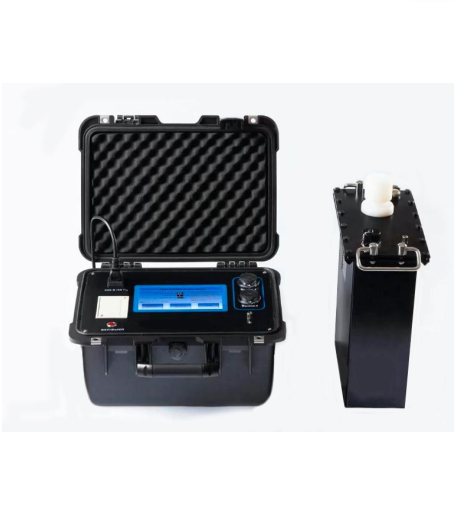

GOLDSOL VLF-40 High Voltage Tester (1–40 kV)

Power Supply: 220 V ± 10% AC (110 V can be customized), 50/60 Hz, single phase

Output Voltage: 1–40 kV peak; 28 kV RMS

Output Frequency: 0.1 Hz, 0.05 Hz, 0.02 Hz, 0.01 Hz (automatic variable frequency)

Load: Automatic variable frequency from 0.1 Hz to 0.01 Hz; load capacitance ≤10.0 μF

Frequency Stability: Fluctuation <0.5%

Measurement Accuracy: ±3%

Positive and Negative Voltage Peak Error: ≤3%

Voltage Waveform Distortion: ≤5%

Construction: 1 control unit + 1 booster

Ambient Operating Conditions: Indoor and outdoor temperature: -10 °C to +50 °C

Humidity: ≤85%
