Housing: Heavy duty housing made from ABS, elastomeric silicon rubber push buttons
Test Leads: Two 25 cm banana plug test leads made of flexible PVC with clip-on crocodile clips, one test lead with RJ-11 modular plug, one test lead with RJ-45 plug

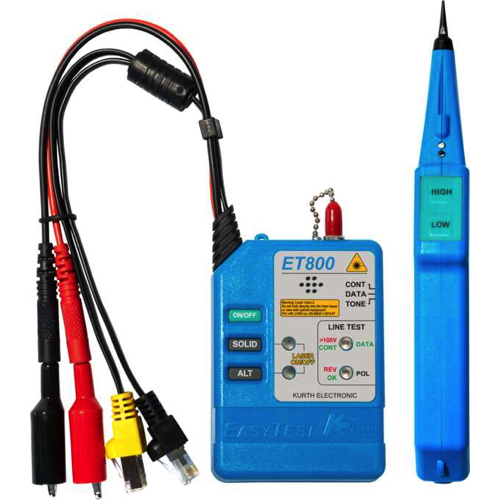

Further Connectors: Fibre optic laser light source (VFL) 2.5 mm universal ferrule; adapter to 1.25 mm, SMA, and POF available optionally
Search Frequencies:
6 frequencies selectable, accuracy < ±1% (Quartz)
SOLID: 1000, 2600, 577.5 Hz
ALT: 1000/800, 2600/1900, 577.5 Hz intermittent
External Voltage Protection: Up to 120 V AC in any mode
Specifications:
-Continuity test with LED
-Resistance test through frequency change
-Network port test with port finder function
-Low battery indication by flashing LED
-Auto shut-off after 45 minutes
-Auto shut-off override incl. indication through flashing LED
-Device on indication through LED
-Indication of ALTERNATING frequency by flashing LED
-Indication of SOLID frequency by steady LED
-Test leads protected by rubber-strain relief
-Separate battery compartment
Reach: Trace cable length up to 15 km / 9.3 mi (no load)
Transmitting Power:
High power output with 9 V battery
9.0 V PP no load
10 dBm at 600 Ohm
9 dBm at 100 Ohm
7.5 dBm at 50 Ohm
Tone over shorted pair up to 250 m / 0.15 mi
Power Supply: 9 V battery; approx. 20 hours battery life respectively approx. 10 hrs with laser CW (depends on type and state of battery model)
Dimensions/Weight: 68 × 96 × 25 mm / 150 g without battery
PROBE410
Specifications:
Filtered signal LED
Torch light function
Solid carbon fiber tip
3.5 mm earphone jack
Separate battery compartment
Reach: Trace distance to cable/wire up to 60 cm / 23.6"
Power Supply: 9 V battery; approx. 100 hours battery life (depends on type and state of battery model)
Dimensions/Weight: 220 × 40/34 × 25 mm / 80 g without battery
