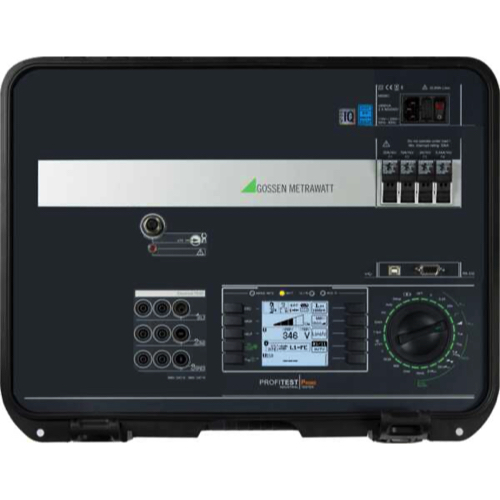

Gossen Metrawatt PROFITEST PRIME Test Instruments For The Electrical Safety Of AC Electric Charging Stations (AC/DC 0 – 1000 V; AC/DC 0 – 10 A; 15.4 Hz – 420 Hz)

Voltage measurement: AC/DC 0 – 1000 V

Current measurement: AC/DC 0 – 10 A

Frequency range: 15.4 Hz – 420 Hz

Resistance measurement: 0 – 30 MΩ

Continuity test: Acoustic signal, test current ≥200 mA

Insulation resistance: 50 / 100 / 250 / 500 / 1000 V DC; up to 30 GΩ

Loop impedance: With and without RCD tripping

Earth resistance: Using probe and clamp methods

RCD testing: Type AC, A, F, B, selective and time-delayed RCDs

RCD test current: 10 / 30 / 100 / 300 / 500 mA

Phase sequence test: Yes

Touch voltage measurement: Yes

Automatic test sequences: Yes

Data memory: Internal memory with USB interface

Display: Large illuminated graphic LCD

Interface: USB for PC communication

Safety category: CAT IV 300 V / CAT III 600 V

Power supply: Rechargeable battery pack

Operating temperature: -10°C to +50°C

Storage temperature: -20°C to +60°C

Protection class: IP40

Dimensions (W × H × D): approx. 240 × 190 × 105 mm

Weight: approx. 1.3 kg
