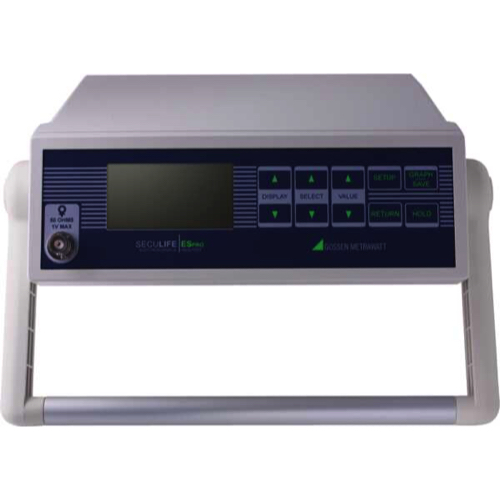

Device:
Display: LCD Graphical 128 x 64 pixels
Construction: 8.6 x 23.1 x 20.3 cm/ABS Plastic
Weight: ≤ 3 lbs. (1.36 kg)
Face Plate: Lexan/Back printed
Operating Range: 15 to 30 °C
Storage Range: -40 to 60 °C
Setup Memory: EEPROM, All Parameter
Power Consumption:
EIN: less than 150 mA
AUS: less than 40 µA
Power Supply Adapter: 6 V DC, 500 mA
Measuring:
Input Compatibility
RF Current Transformer: 50 Ohm
RF Current Transformer: 0.1:1 / 1:1 free to choose by user
Input Voltage Range
Voltage (RMS): 2.0 – 700.0 mV RMS
Input Resolution: 0.1 mV RMS
Voltage (Peak, Peak-to-Peak): 1000,0 mV
Resolution: 0.1 mV
Frequency: 10 kHz - 10 MHz
Accuracy:
0.5 mV, ≤ 50 mV
1% reading, > 50 mV, up to 1 MHz
3% reading, > 50 mV, 1 to 10 MHz
Maximum Input Voltage: 33 V p-p internally Protected
Input Impedance: 50 ohms
Calculated Ranges
Strom (with 0,1:1 CT): 700.0 mA RMS
Resolution: 0.1 mA
Current (with 1:1 CT): 70.00 mA RMS
Resolution: 0.01 mA
Wattage: 999.9 Watt
Resolution: 0.1 Watt
Crest Factor: 1.4 to 500
Resolution: 0.1
